INFORMACIÓN

Grupo de productos
Cargadoras sobre ruedas
Marca / modelo

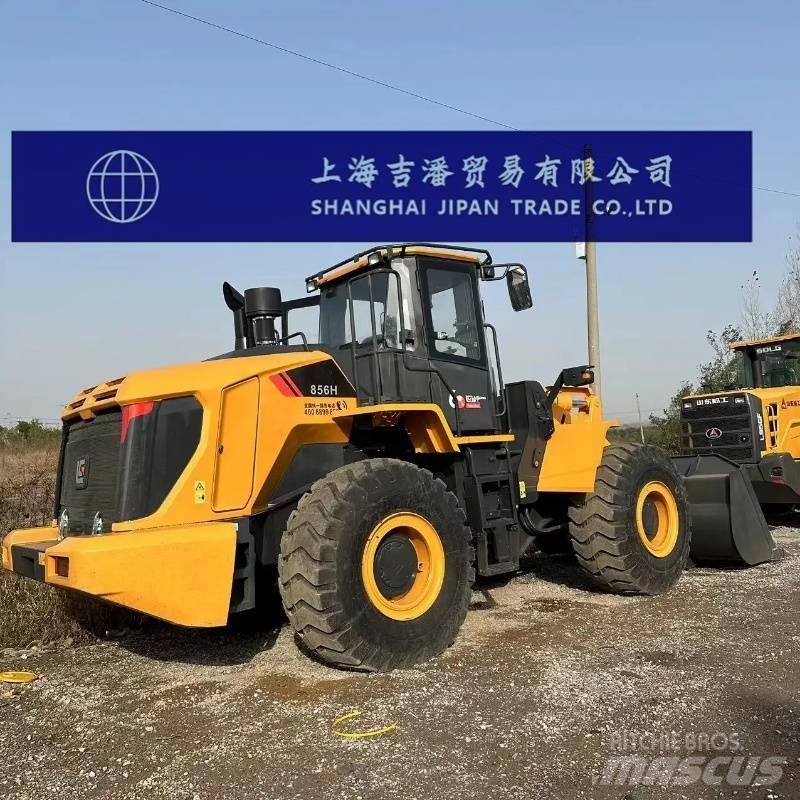

Liugong CLG 856 H
Año de fabricación
2018
Horas de uso
4.520 h
País
China
Mascus ID
DB1F1DB5

PRECIO

Seleccione una moneda

DETALLES

Tipo
Diesel
Peso bruto
16.900 kg
Capacidad máxima de carga
5.000 kg
Tipo de carrocería
Chasis fijo

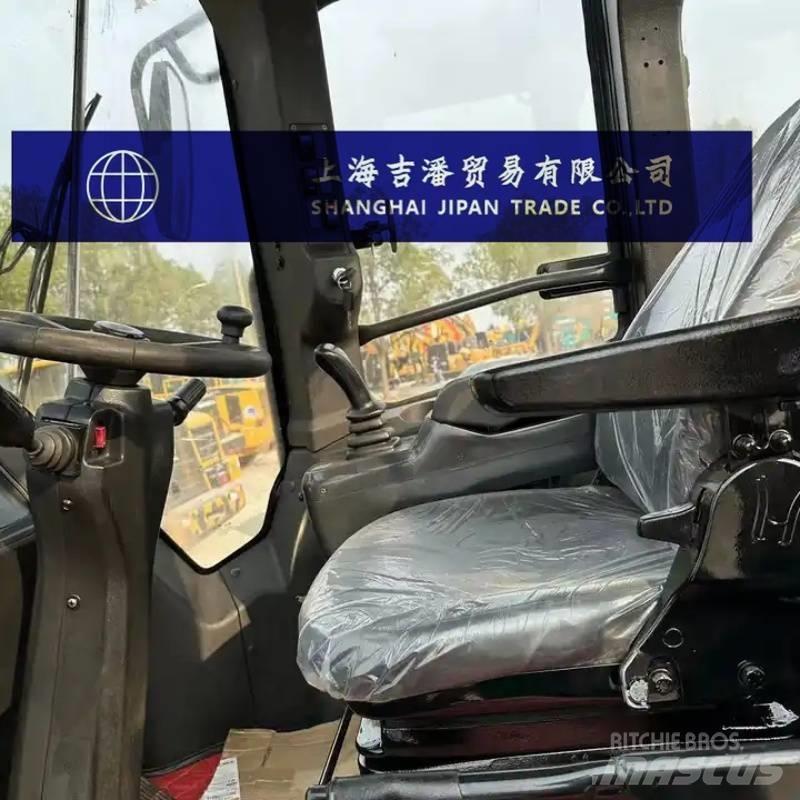

Tipo de cabina
Cabina cerrada
Clase de emisiones
Etapa V
Motor
original
Capacidad de cubeta
3 m3
Potencia del motor
168 kW (228 cv)
Fabricante del motor
original
Dimensiones de transporte (LaxAnxAl)
8230 x 2970 x 3500 mm
Color original
original
País de fabricación
China
Términos de entrega
FCA, FOB, CFR, CIF, EXW
Accesorios
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.
Accesorios
Aire acondicionado
Cuchara
Cuchara excavadora estándar
Más información

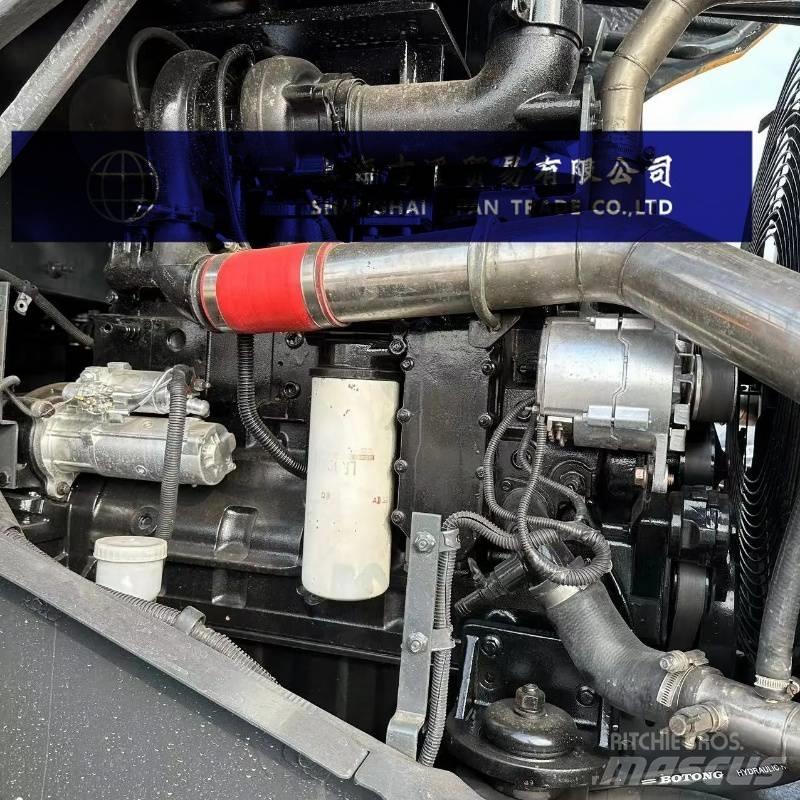

基本性能参数 额定载重量:5000kg(另有说法为 5500kg,可能因具体配置或生产批次而异) 整机操作重量:16900kg 铲斗容量:2.7~5.6m³(标准斗容为 3m³) 最大挖掘力(掘起力):175kN(另有说法为 180kN) 最大牵引力:175kN 动力类型:燃油 行走方式:轮胎式 工况用途:通用型 吨位区间:5~8 吨 发动机参数 发动机型号:康明斯 QSL9.3(另有说法为康明斯 6LTAA9.3) 型式:电喷、六缸直列、涡轮增压空 - 空中冷 额定功率 / 转速:168kW/2200rpm(另有说法为 170kW/2000rpm) 最大扭矩 / 转速:1187N·m/r/min 总排量:9.3L 燃油消耗率:具体数值可能因工况而异 整机尺寸参数 整机长度:8230mm(另有说法为 8565mm,可能因具体配置或测量方式而异) 整机宽度:2970mm 整机高度:3500mm 轴距:3320mm(另有说法为 3370mm) 轮距:2150mm 最小离地间隙:431mm 作业参数 卸载高度 - 卸载角度为 45°:3100mm 卸载距离 - 卸载角度为 45°:1195mm 三项和(工作装置动作时间):10.3s(另有说法为 9.7s) 动臂提升时间:5.8s 转向角度:38° 最小转弯半径(以外侧轮中心计):5905mm 变速箱:行驶速度有多档可调,如 1 档前进 / 后退速度为 11.5/15km/h,2 档为 37km/h(具体其他档位速度可能因配置而异) 油量:燃油箱容量为 300L,发动机机油为 22L,冷却系统为 42LMostrar más
