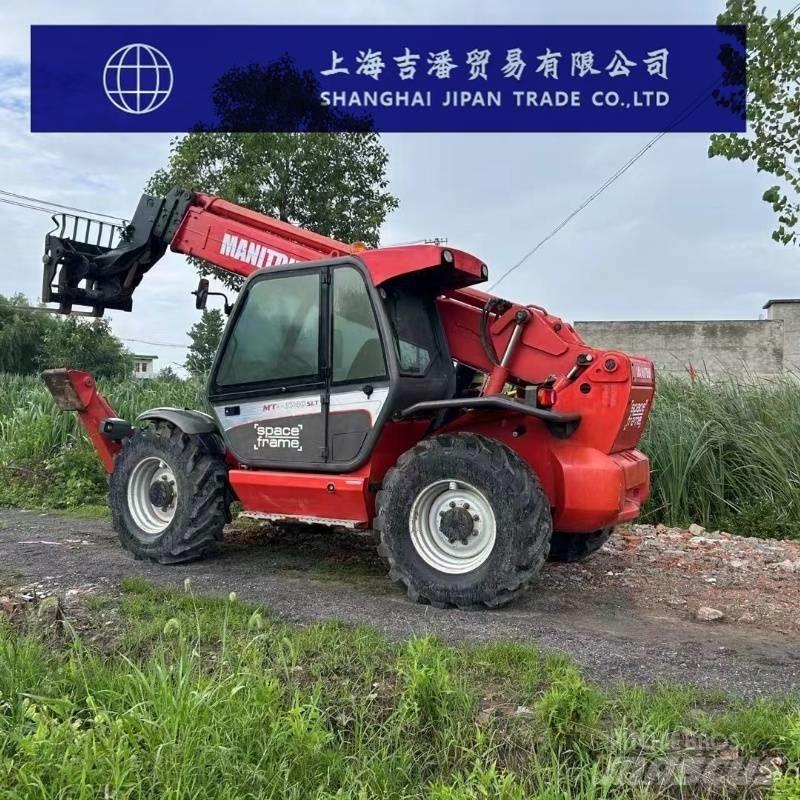

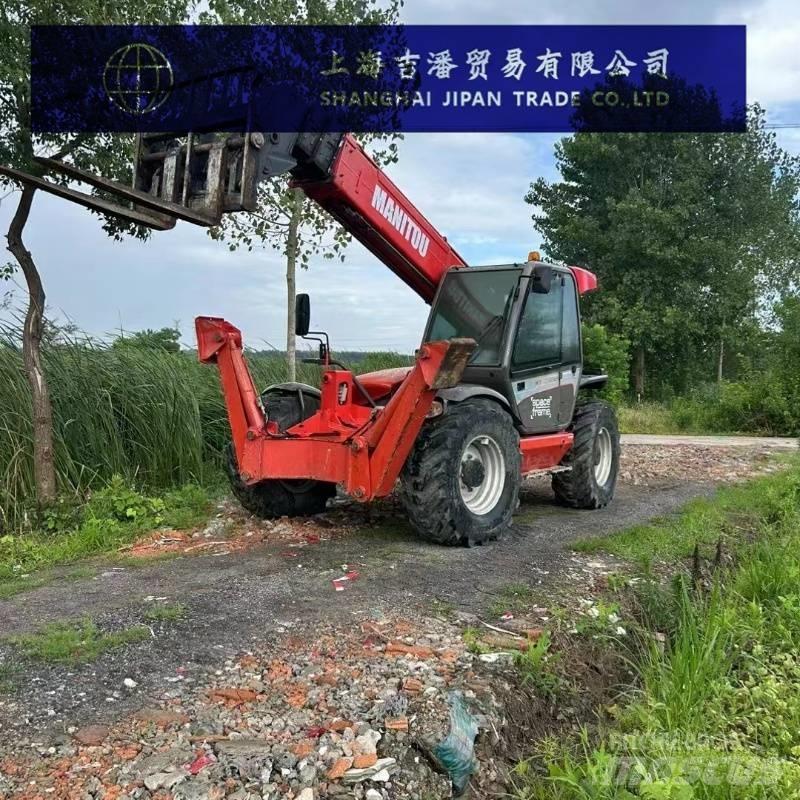

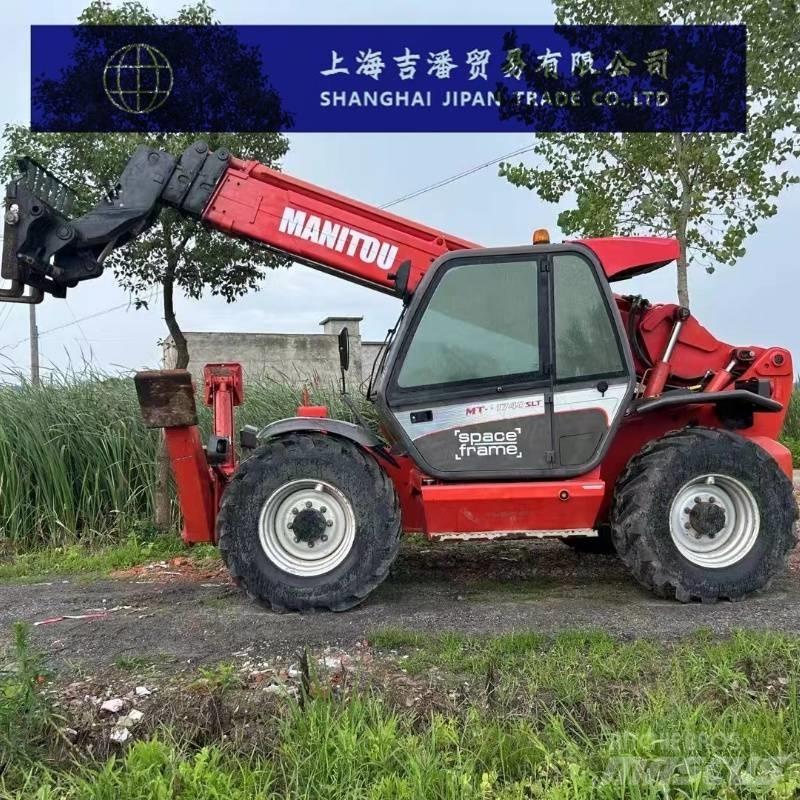

Manitou MT 1740 SL T
Precio sin IVA
Imprimir
INFORMACIÓN
Grupo de productos
Carretillas telescópicas
Marca / modelo
Manitou MT 1740 SL T
Año de fabricación
2020
Horas de uso
2.500 h
País
China
Grado general
1
2
3
4
5
Mascus ID
BE4D0BF3
PRECIO
Seleccione una moneda
DETALLES
Referencia
1
Tipo
Diesel
Tipo
Giratorio
Número de serie
1
Tipo de tracción
4x4
Última revisión
2025-07-08
Nº de propietarios anteriores
1
Peso bruto
11.200 kg
Capacidad máxima de carga
4.000 kg
Número de matrícula
1
Altura de elevación
16,7 m
Tipo de cabina
Cabina cerrada
Clase de emisiones
Etapa V
Motor
Original
Tipo de carrocería
Chasis fijo
Potencia del motor
74,5 kW (101 cv)
Fabricante del motor
Original
Transmisión
Original
Cubicaje del motor
4.400 cm3
Velocidad máxima
25 km/h
Tamaño de neumáticos
400/80-24 TL 156B
Color original
Original
Salida de elementos hidráulicos adicionales
196 l/min
Dimensiones de transporte (LaxAnxAl)
7180 x 2425 x 2785 mm
Marca de neumáticos
米其林
Alcance con carga máxima
12,4 m
Condiciones/Garantía
Good Condition
Restante de neumáticos delanteros
98
Restante de neumáticos traseros
2
País de fabricación
Francia
Términos de entrega
FCA, FOB, CIF, EXW
Certificados
EPA, CE
Accesorios
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Jason
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Accesorios
puas
Barra estabilizadora
Elementos hidráulicos adicionales
Cuchara
Más información
Basic performance
Engine power (kW)74.5/2200
Operating weight (in kilograms) : 11,220
Rated load (kg) : 4000
More than 100 horsepower
The maximum load (in kilograms) is over 3,500 kilograms
Job parameters
Maximum lifting capacity (kg) : 4000
The lifting Angle range is from the lowest to the highest (°)-0.028967254
Maximum lifting height (m) : 16.65
Maximum external elongation (m)12.35
The maximum external elongation overturning load (kg) is 957
Turning radius (m) : 5709
Engine
Model: Perkins 1104D-44T
Rated power (kw/rpm)74.5/2200
Maximum torque (N.m) : 412/1400
Displacement (L) : 4.4
Hydraulic system
The maximum working pressure of the system (bar) is 260
The maximum system flow rate (L/min) is 196
Transmission system
Gear 4
Maximum driving speed (km/h) : 25
Tire size: 440/80-24
Oil capacity
Fuel tank (L)135
Oil tank (L)11
Engine coolant (L)18.5
Transmission fluid (L)16
Hydraulic system (L)175
Overall dimensions
The total length of the entire machine is 7180 mm
The total length of the entire machine is 5980 mm
The full width of the entire machine (mm) is 2425
The total height of the entire machine (mm) is 2785
Cab height (mm) : 2605
The height of the steering wheel from the ground is 1880 mm
Wheelbase (mm) : 2770
Track (mm)1990
Ground clearance (mm) : 480
Departure Angle (°) : 50
