COMAU NJ-60-2.2

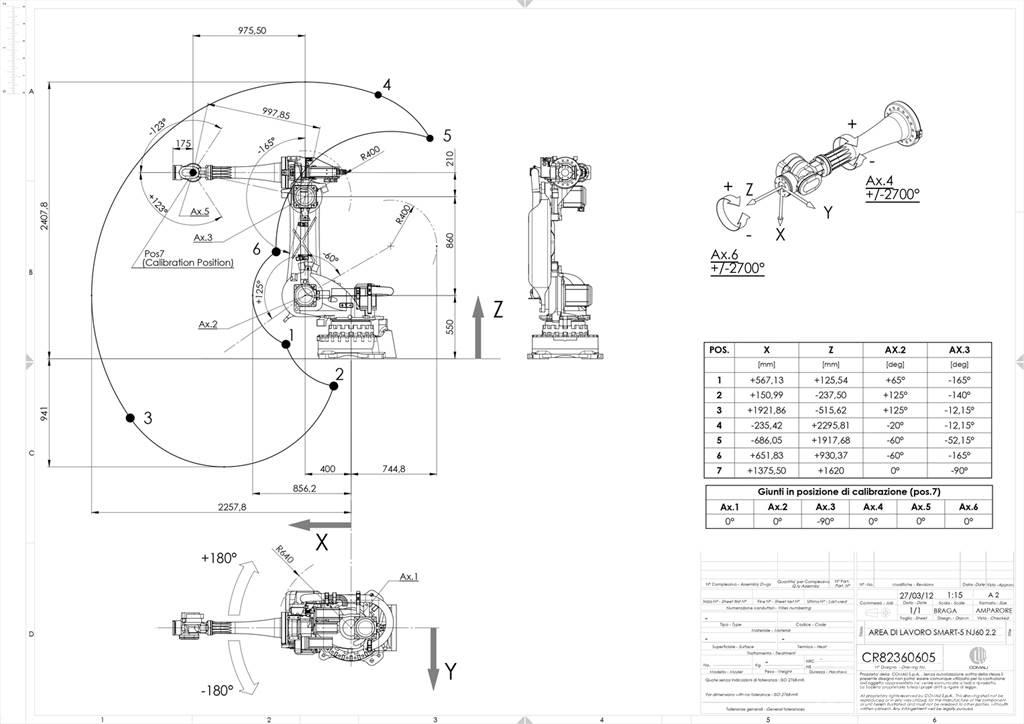

Smart 6-Axis Robot Arm NJ-60-2.2 Title: Smart 6-Axis Robot Arm NJ-60-2.2 SKU: 123509 Model: NJ-60-2.2 Year: 2022 Condition: Surplus New Made In: ITALY Number of axes: 6 Maximum wrist payload (kg): 60 Additional load on forearm (kg): 20 Maximum horizontal reach (mm): 2258 Torque on axis 4 (Nm): 221 Torque on axis 5 (Nm): 221 Torque on axis 6 (Nm): 118 Stroke (Speed) on Axis 1: +/- 180 deg. (170 deg/s) Stroke (Speed) on Axis 2: -60 deg. / +125 deg. (150 deg/s) Stroke (Speed) on Axis 3: 0 deg. / -165 deg. (165 deg/s) Stroke (Speed) on Axis 4: +/- 2700 deg. (265 deg/s) Stroke (Speed) on Axis 5: +/- 123 deg. (250 deg/s) Stroke (Speed) on Axis 6: +/- 2700 deg. (340 deg/s) Repeatability (mm): 0.06 Tool coupling flange: ISO 9409-1-A100 Robot weight (kg): 645 Protection class: IP65 / IP67 Mounting position: Floor / Ceiling / Sloping (45 deg. max) Operating Areas A (mm): 2408 Operating Areas B (mm): 2258 Operating Areas C (mm): 1918 Operating Areas D (mm): 686 Operating Areas E (mm): 941
