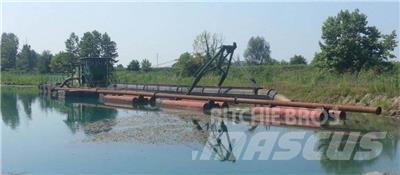

DRAGHE LARIO PD350SX

Max dredging depth is 35 m, the pump is a PD350SX and can provide about 1800 m3 per hour 20% solid 80% liquid (300 m3 of sand). Suction pipe is 400 mm wide and the delivery pipe diameter measures 350 mm. Max discharge distance is 1 km. The unit is 39,20 m long (53,50 m over all) and 5,90 m wide. The main engine is a Caterpillar 3508 DI-TA and the generator is also a Caterpillar SR4B
