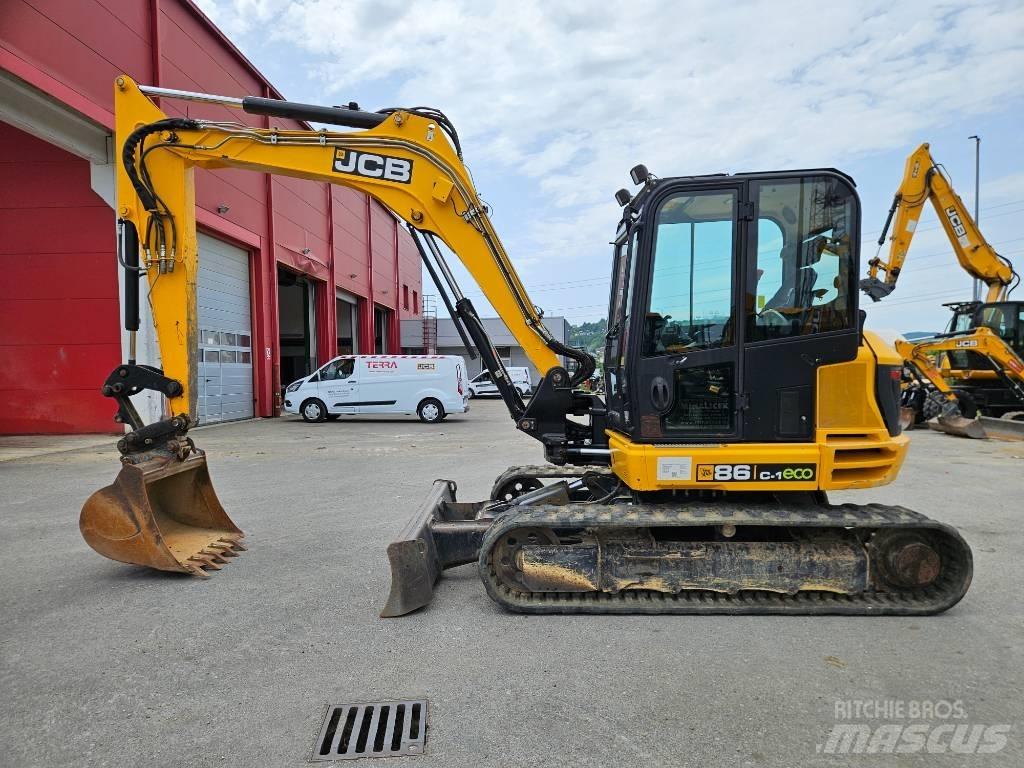

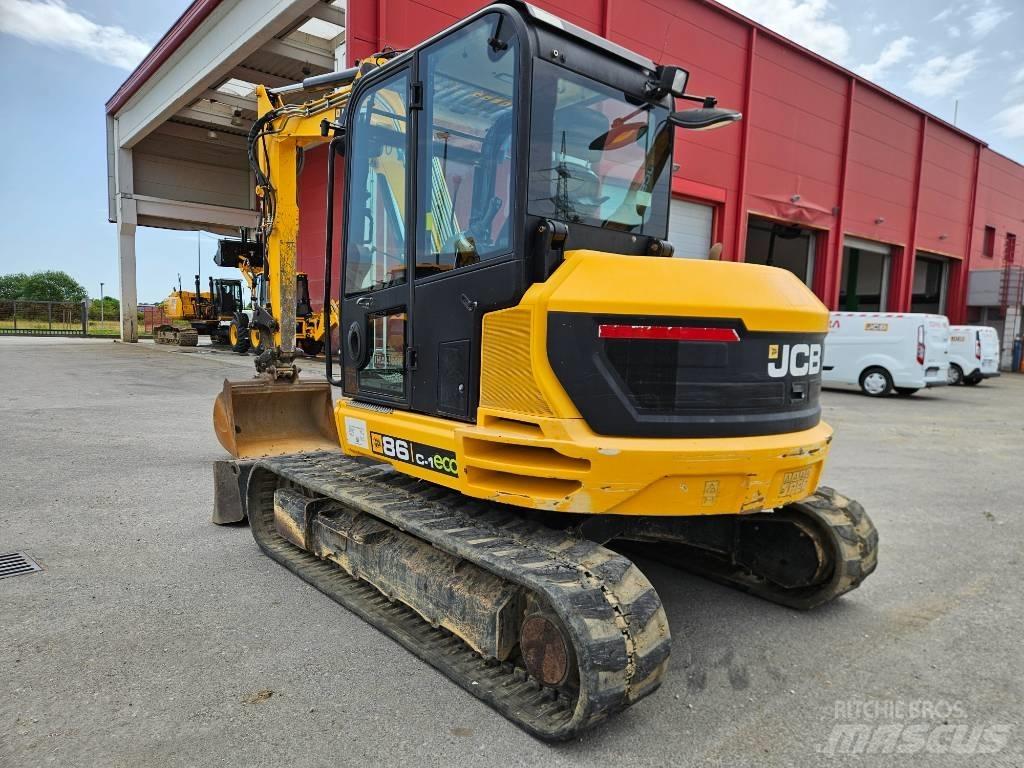

JCB 86 C-1 eco

Name: JCB 86 C-1 eco
Brand: JCB
SKU: F9959E0E
Price: 32200 EUR
Availability: InStock

Precio sin IVA

Favorito

Guardar búsqueda

Imprimir

INFORMACIÓN

Grupo de productos

Excavadoras 7t - 12t

Marca / modelo

JCB 86 C-1 eco

Año de fabricación

2017

Horas de uso

8.520 h

Estado

Reacondicionado

Ubicación

Sveta Nedelja, Zagrebačka županija

País

Croacia

Mascus ID

F9959E0E

PRECIO

Seleccione una moneda

DETALLES

Referencia

2576432

Tipo

Diesel

Número de serie

2576432

Peso bruto

8.649 kg

Motor

Diesel

Clase de emisiones

Etapa IV

Potencia del motor

48 kW (65,3 cv)

Fabricante del motor

JCB

Ancho de carril

450 mm

Dimensiones de transporte (LaxAnxAl)

6435 x 2300 x 2706 mm

Color original

Žuta

País de fabricación

Reino Unido

Términos de entrega

EXW

Más información

Model: JCB 86 C-1 Year of Manufacture: 2017 Operating Hours: 8,520 Included attachments: Mechanical quick coupler for tool exchange 1060 mm digging bucket Additional machine specifications: Engine: Engine Model: KDI 2504 TCR – Stage IIIB / Tier 4 Final Fuel Type: Diesel Cooling System: Water-cooled Engine Power: 48 kW (65 HP) at 2200 rpm Torque: 300 Nm at 1500 rpm Displacement: 2500 cm³ Maximum Gradeability: 35° Electric Starter Motor: 2 kW Battery: 12V / 750 A Alternator: 12V / 100 A Hydraulic System: Rated Flow at 2200 rpm: 158.4 l/min Main Line Pressure (digging/driving): 280 bar Swing Pressure: 226 bar Auxiliary Hydraulic Flow – Low: 15 l/min (190 bar) Auxiliary Hydraulic Flow – High: 100 l/min (190 bar) Undercarriage: Number of Top Rollers: 1 Number of Bottom Rollers: 5 Track Width: 450 mm Ground Clearance (undercarriage): 345 mm Track Tensioning: Grease-adjusted Travel Speed – Low: 2.6 km/h Travel Speed – High: 5.0 km/h Tractive Effort: 65 kN Weights: Operating Weight (with 450 mm rubber tracks): 8649 kg Transport Weight: 8525 kg Dimensions: Idler to Sprocket Distance: 2325 mm Track Length on Ground: 2325 mm Total Undercarriage Length (rubber): 2950 mm Clearance Under Swing Frame: 793 mm Rear Tail Swing Radius: 1490 mm Upper Structure Width: 2187 mm Height to Cab Top: 2706 mm Ground Clearance: 350 mm Track Frame Width: 1850 mm Overall Width with 450 mm Tracks: 2300 mm Overall Length with Standard Boom: 6435 mm Transport Height: 2706 mm Track Height: 650 mm Clearance Under Counterweight: 762 mm Model: JCB 86 C-1 Godina proizvodnje: 2017 Broj radnih sati: 8520 Od priključaka s njime dolazi: - Mehanička brza spojka za izmjenu radnih alata - Kopačka žlica 1060 mm Ostale specifikacije stroja: Motor: Model: KDI 2504 TCR – Stage IIIB / Tier 4 Final Gorivo: Dizel Hlađenje: Vodeno Snaga motora: 48 kW (65 KS) pri 2200 o/min Okretni moment: 300 Nm pri 1500 o/min Obujam: 2500 cm³ Maks. nagib (penjanje): 35° Elektromotor startera: 2 kW Baterija: 12V / 750 A Alternator: 12V / 100 A Hidraulički sustav: Nazivni protok pri 2200 o/min: 158.4 l/min Tlak glavne linije (iskop/vožnja): 280 bar Tlak za zakretanje: 226 bar Pomoćni hidraulički protok – niski: 15 l/min (190 bar) Pomoćni hidraulički protok – visoki: 100 l/min (190 bar) Podvozje: Broj gornjih valjaka: 1 Broj donjih valjaka: 5 Širina gusjenica: 450 mm Prolaz ispod podvozja: 345 mm Zatezanje gusjenica: mast Brzina vožnje – spora: 2.6 km/h Brzina vožnje – brza: 5.0 km/h Vučno naprezanje: 65 kN Težine: Radna težina (450 mm gumene gusjenice): 8649 kg Transportna težina: 8525 kg Dimenzije: Razmak između kotača lančanika: 2325 mm Duljina gusjenice na tlu: 2325 mm Ukupna duljina podvozja (guma): 2950 mm Prolaz ispod rotacione konzole: 793 mm Polumjer zakretanja stražnjeg dijela: 1490 mm Širina gornje konstrukcije: 2187 mm Visina do vrha kabine: 2706 mm Prolaz ispod stroja: 350 mm Širina gusjenica: 1850 mm Ukupna širina s 450 mm gusjenicama: 2300 mm Ukupna duljina s osnovnim krakom: 6435 mm Visina u transportu: 2706 mm Visina gusjenice: 650 mm Prolaz ispod protuutega: 762 mmMostrar más
