INFORMACIÓN

Grupo de productos
Excavadoras de cadenas
Marca / modelo

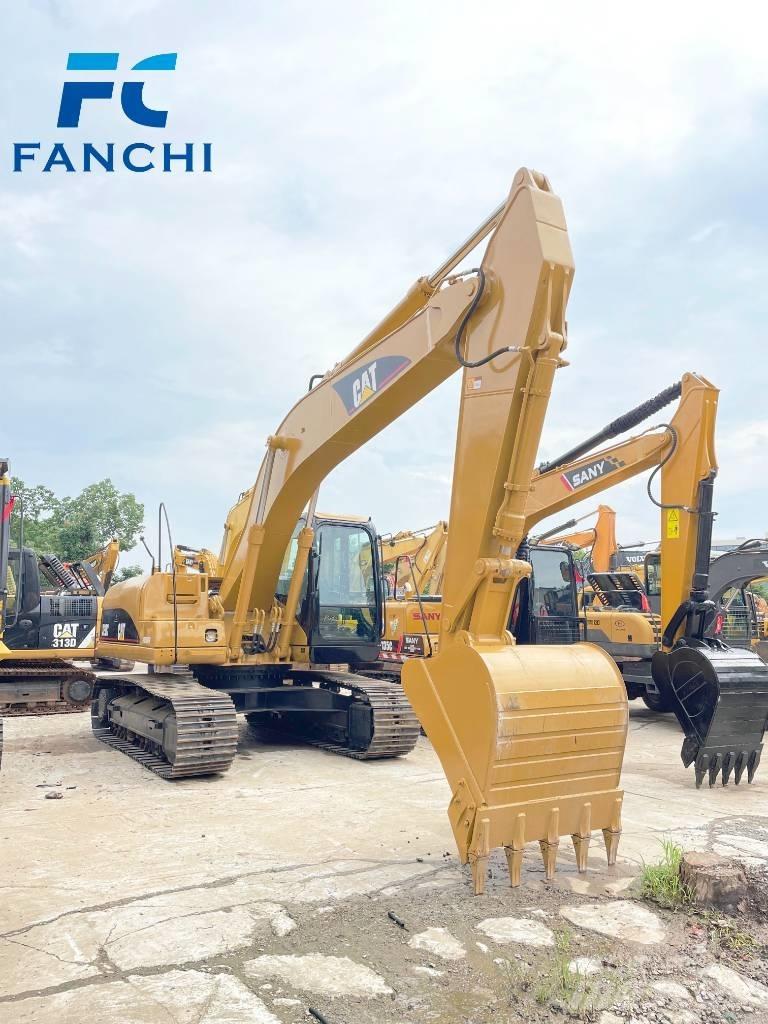

CAT 320 C
Año de fabricación
2024
Horas de uso
455 h
País
China
Grado general
1
2
3
4
5
Mascus ID
5230FF4E

PRECIO

Seleccione una moneda

DETALLES

Nº de propietarios anteriores
1
Condiciones del chasis
good
Peso bruto
20.000 kg
Potencia del motor
162 kW (220 cv)
Fabricante del motor
JAPAN
Capacidad de cubeta
1,25 m3
Ancho de carril
750 mm
Velocidad máxima
8 km/h
Color original
YELLOW
Longitud de palanca y draga
1.820 mm
Condiciones/Garantía
good
País de fabricación
Japón
Términos de entrega
FOB, EXW
Certificados
EPA, CE, ANSI, AS, CSA, EAC GOST, TRUA, JIS, TÜV, ASME
Accesorios
All the auxiliary accessories can be provided for you. The above information is for reference only, and the specific details need to be confirmed with the factory.
Accesorios
válvula de seguridad por rotura de tubería, brazo -> válvula de seguridad por rotura de tubería - brazo/montacargas
válvula de seguridad por rotura de tubería, cucharón -> válvula de seguridad por rotura de tubería - palanca/draga
cesta
Cuchara
Mostrar más
Más información

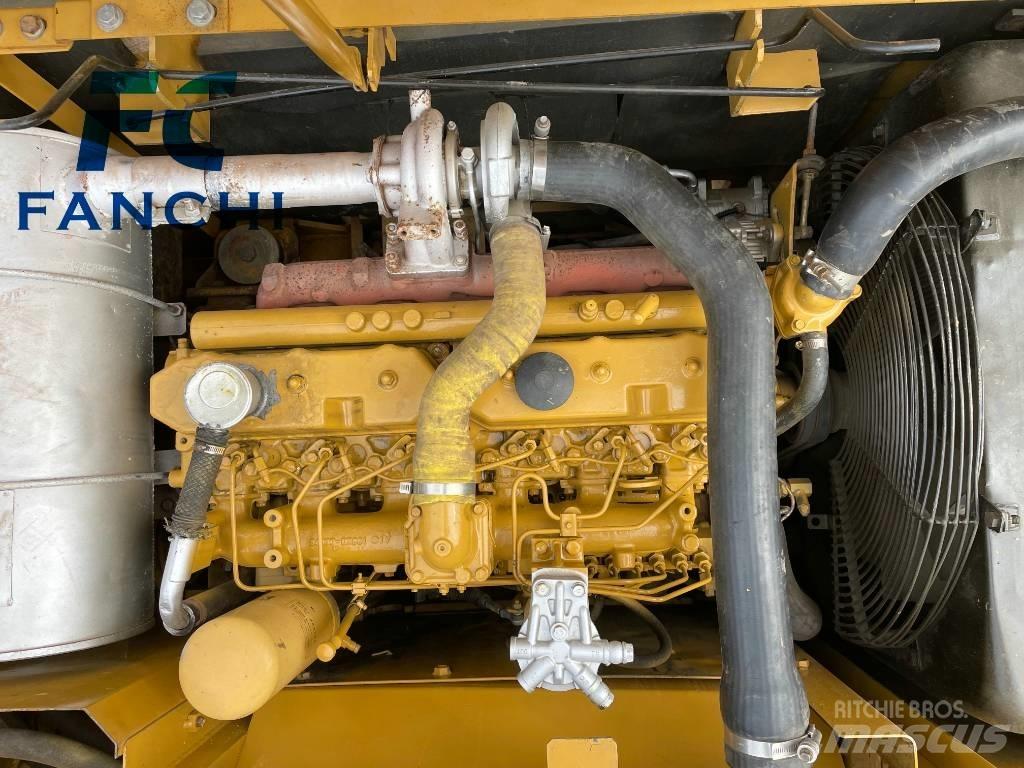

The Caterpillar Cat320C is a classic medium-sized crawler excavator. Here are some of its common parameter details: General Specifications - Operating weight of the whole machine: Approximately 20,000 kg - Standard bucket capacity: 0.9 - 1.25 m³ Engine - Model: Cat C6.4 - Rated power: Approximately 121 kW (162 hp) / 2000 rpm - Fuel tank capacity: Approximately 454 L - Coolant capacity: Approximately 40 L - Engine oil capacity: Approximately 30 L Performance Parameters - Maximum digging radius: Approximately 9.9 m - Maximum digging depth: Approximately 6.6 m - Maximum unloading height: Approximately 6.7 m - Gradeability: 70% (35°) Travel System - Track shoe width: 600 mm or 750 mm - Gauge: Approximately 2.5 m - Ground pressure: Approximately 45 - 50 kPa Hydraulic System - Main pump type: Variable displacement axial piston pump - System pressure: Approximately 32.4 MPa - Pilot system pressure: Approximately 3.9 MPa - Swing hydraulic motor: Axial piston motor - Travel hydraulic motor: Axial piston motor Cab - Complies with ROPS/FOPS standards: Provides safety protection for the operator. - Equipped with an air conditioning system: Creates a comfortable working environment for the operator.Mostrar más

Shanghai FanChi Machinery trading Co., LTD

hongmei Road 200000 Minhang Shanghai 上海 China
