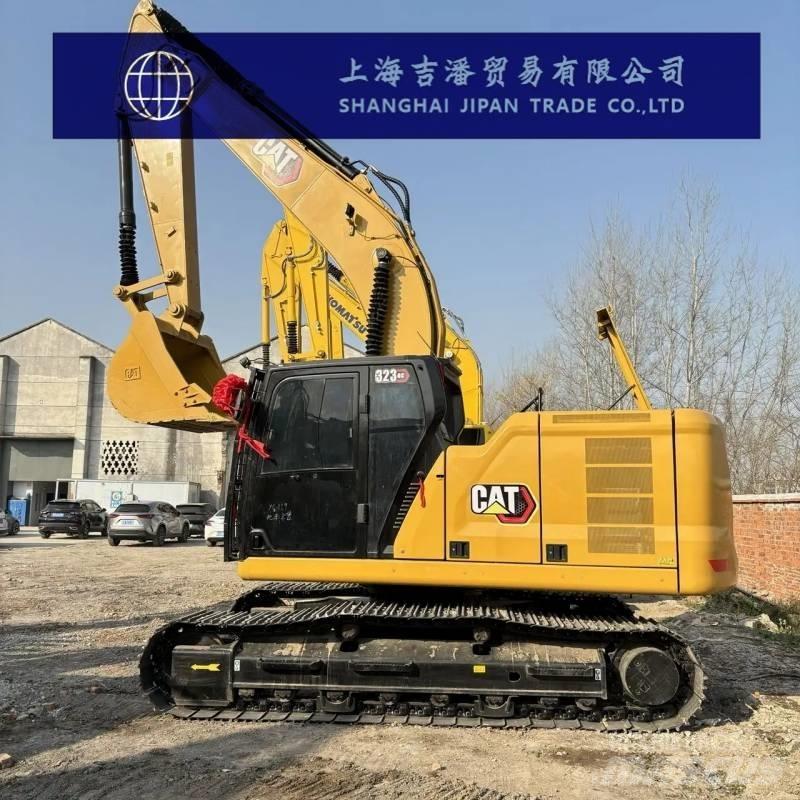

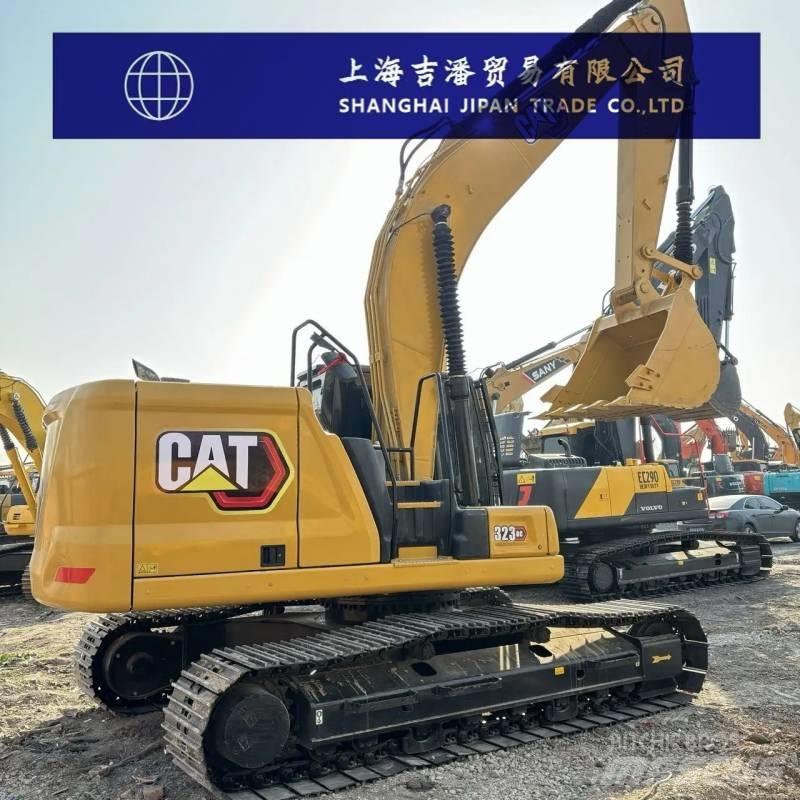

CAT 323 GC
Precio sin IVA
Imprimir
INFORMACIÓN
Grupo de productos
Excavadoras de cadenas
Marca / modelo
CAT 323 GC
Año de fabricación
2023
Horas de uso
600 h
País
China
Grado general
1
2
3
4
5
Mascus ID
F4B5E9EA
PRECIO
Seleccione una moneda
DETALLES
Referencia
1
Tipo
Diesel
Número de serie
1
Nº de propietarios anteriores
1
Última revisión
2025-06-30
Condiciones del chasis
Good Condition
Motor
Original
Peso bruto
22.500 kg
Potencia del motor
129 kW (176 cv)
Fabricante del motor
Original
Número de matrícula
1
Clase de emisiones
Etapa V
Capacidad de cubeta
1,30 m3
Ancho de carril
600 mm
Salida de elementos hidráulicos adicionales
429 l/min
Velocidad máxima
5,70 km/h
Dimensiones de transporte (LaxAnxAl)
9530 x 3650 x 2960 mm
Color original
Original
Longitud de palanca y draga
2.900 mm
Condiciones/Garantía
1 Year
País de fabricación
Estados Unidos
Términos de entrega
FCA, FOB, CIF, EXW
Certificados
EPA, CE
Accesorios
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Jason
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Email:
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Accesorios
válvula de seguridad por rotura de tubería, brazo -> válvula de seguridad por rotura de tubería - brazo/montacargas
válvula de seguridad por rotura de tubería, cucharón -> válvula de seguridad por rotura de tubería - palanca/draga
cesta
Aire acondicionado
Elementos hidráulicos adicionales
Pre filtro de motor
Cuchara
Baliza giratoria
Calentador diesel
Joystick de control
Cuchara excavadora estándar
Cuchara de cable
Cuchara para zanjas
Más información
Parameter configuration of Caterpillar's new generation CAT®323 GC hydraulic excavator
Specification
Power fuel
Joint venture/import by manufacturers
Bucket backhoe
Tonnage (tons)23
The working weight of the entire machine (kg) is 22,500
Bucket capacity (m³) : 1.3
Boom length (mm) : 5700
The length of the boom (mm) is 2900
Performance
Rotational speed (rpm) : 11.25
The rotary torque (Nm) is 82k
Walking speed (km/h)5.7
Bucket digging force (kN) : 140
Bucket shaft digging force (kN)107
Maximum traction force (kN)205
Power system
Engine model: Cat® C4.4
Rated power (kw/rpm) : 129.4/2000
Displacement (L) : 4.4
Cylinder diameter × stroke (mm) : 105*127
Emission standard: National IV
Hydraulic system
The maximum flow rate of the main pump (l/min) is 429
Working hydraulic circuit (Mpa)35
Walking hydraulic circuit (Mpa)34.3
Rotary hydraulic circuit (Mpa)26.8
Oil capacity
Fuel tank (L)345
Hydraulic oil tank (L)115
Hydraulic System (L)234
Engine oil change volume (L)15
Coolant (L)25
Main body size
The total transportation length (mm) is 9530
The total transportation width (mm) is 3650
The total transportation height (mm) is 2960
The total length of the track (mm) is 4450
Track plate width (mm) : 2980
Track gauge (mm) : 2380
The ground clearance of the counterweight (mm) is 1050
Minimum ground clearance (mm) : 470
Rear end turning radius (mm)2830
Scope of work
Maximum excavation radius (mm) : 9870
Maximum excavation depth (mm) : 6730
Maximum excavation height (mm) : 9450
Maximum unloading height (mm) : 6490
Maximum vertical excavation depth (mm) : 5610
