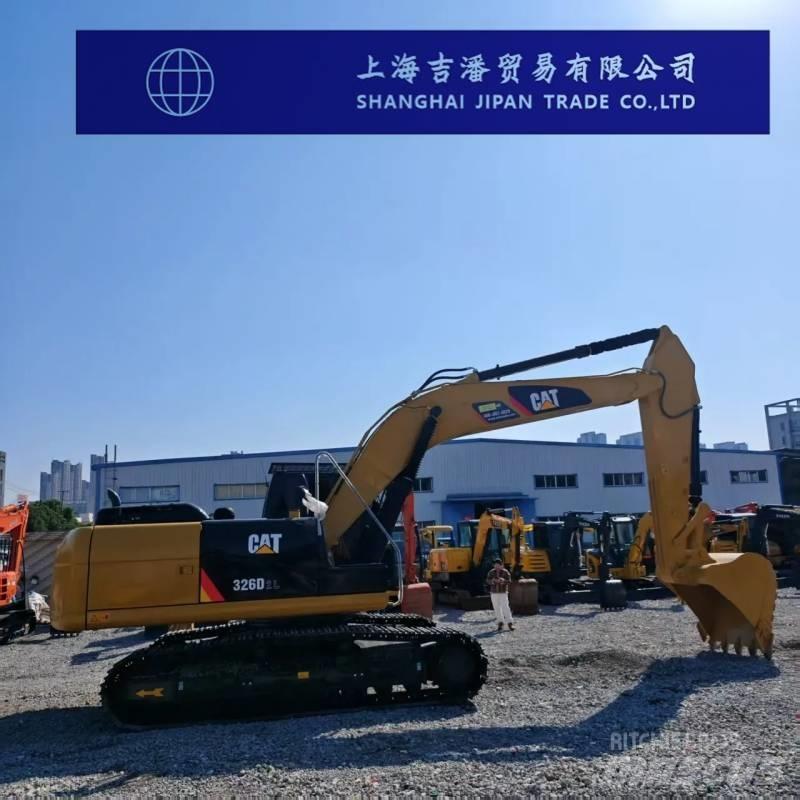

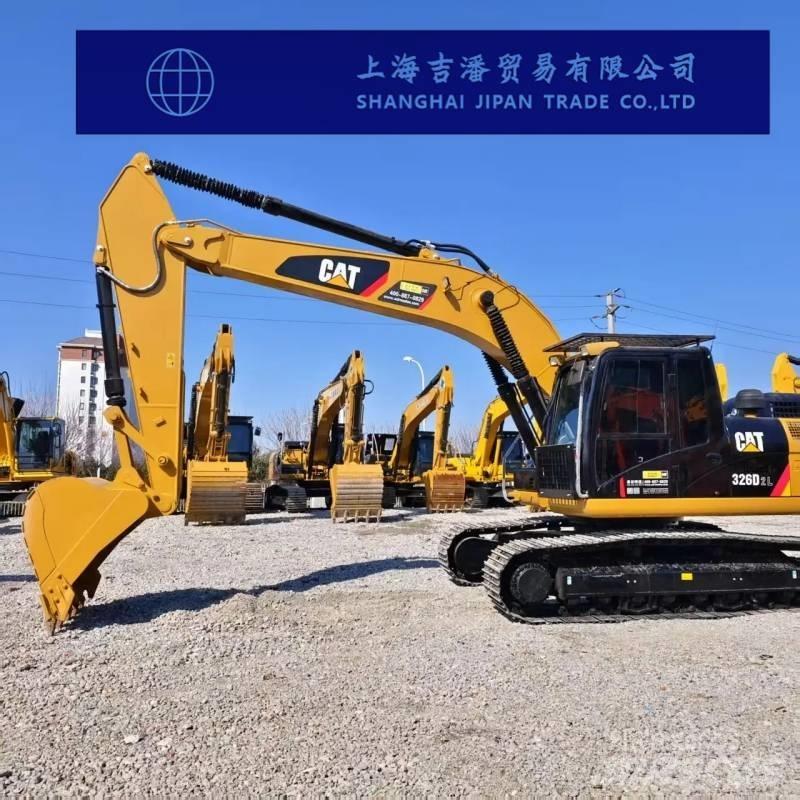

CAT 326 D
Precio sin IVA
Imprimir
INFORMACIÓN
Grupo de productos
Excavadoras de cadenas
Marca / modelo
CAT 326 D
Año de fabricación
2023
Horas de uso
600 h
País
China
Grado general
1
2
3
4
5
Mascus ID
09A06087
PRECIO
Seleccione una moneda
DETALLES
Referencia
1
Tipo
Diesel
Número de serie
1
Nº de propietarios anteriores
1
Última revisión
2025-06-30
Condiciones del chasis
Good Condition
Motor
Original
Peso bruto
25.560 kg
Potencia del motor
140 kW (190 cv)
Fabricante del motor
Original
Número de matrícula
1
Clase de emisiones
Etapa V
Capacidad de cubeta
1,35 m3
Ancho de carril
600 mm
Salida de elementos hidráulicos adicionales
235 l/min
Velocidad máxima
5,50 km/h
Dimensiones de transporte (LaxAnxAl)
10060 x 3390 x 3170 mm
Color original
Original
Longitud de palanca y draga
2.950 mm
Condiciones/Garantía
1 Year
País de fabricación
Estados Unidos
Términos de entrega
FCA, FOB, CIF, EXW
Certificados
EPA, CE
Accesorios
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Jason
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Accesorios
válvula de seguridad por rotura de tubería, brazo -> válvula de seguridad por rotura de tubería - brazo/montacargas
válvula de seguridad por rotura de tubería, cucharón -> válvula de seguridad por rotura de tubería - palanca/draga
cesta
Aire acondicionado
Elementos hidráulicos adicionales
Pre filtro de motor
Cuchara
Baliza giratoria
Calentador diesel
Joystick de control
Cuchara excavadora estándar
Cuchara de cable
Más información
Specification
The working weight of the entire machine (kg) is 25,560
Bucket capacity (m³) : 1.35/1.57
Boom length (mm) : 5300/5900
Boom length (mm) : 2000/250/2950
Tonnage (tons)26
Power Traditional Power
Bucket backhoe
Joint venture/import by manufacturers
Power Traditional Power
Performance
Rotational speed (rpm) : 9.6
Rotary torque (Nm) : 73.4
Walking speed (km/h)5.5
Bucket digging force (kN)174
The digging force of the bucket arm (kN) is 122
Maximum traction force (kN)227
Power system
Engine model: Caterpillar C7 ACERT
Rated power (kw/rpm) : 140
Displacement (L)7.2
Cylinder diameter × stroke (mm)110×127
The cooling method is water cooling
Hydraulic system
The main overflow set pressure (Mpa) is 35
The maximum flow rate of the main pump (l/min) is 235
Type 35 of walking hydraulic motor
Rotary hydraulic motor type 24.5
Pilot oil circuit (MPa)3.9
Boom cylinders - Number × cylinder diameter × stroke (mm)2×135× 135 5
Bucket rod cylinder - number × cylinder diameter × stroke (mm)1×140×1660
Bucket cylinder - Number × cylinder diameter × stroke (mm)1×150×1156
Oil capacity
Fuel tank (L)520
Hydraulic oil tank (L)145
Hydraulic system (L)300
Engine oil change volume (L) : 30
Coolant (L)30
Main body size
Total transportation length (mm) : 10060
The total transportation width (mm) is 3390
The total transportation height (mm) is 3170
The total height of the cab (mm) is 2980
The ground clearance of the counterweight (mm) is 1060
The total length of the track (mm) is 4630
Track plate width (mm) : 600
The total width of the tracks (mm) is 3390
Track gauge (mm) : 2590
Minimum ground clearance (mm) : 470
The rear end turning radius (mm) is 2940
Scope of work
The maximum excavation radius of the shutdown face (mm) is 10030
Maximum excavation depth (mm) : 6740
Maximum excavation height (mm) : 9660
Maximum unloading height (mm) : 6700
Maximum vertical excavation depth (mm) : 5830
The maximum effective excavation depth (mm) is 6560
