INFORMACIÓN

Grupo de productos
Excavadoras de cadenas
Marca / modelo

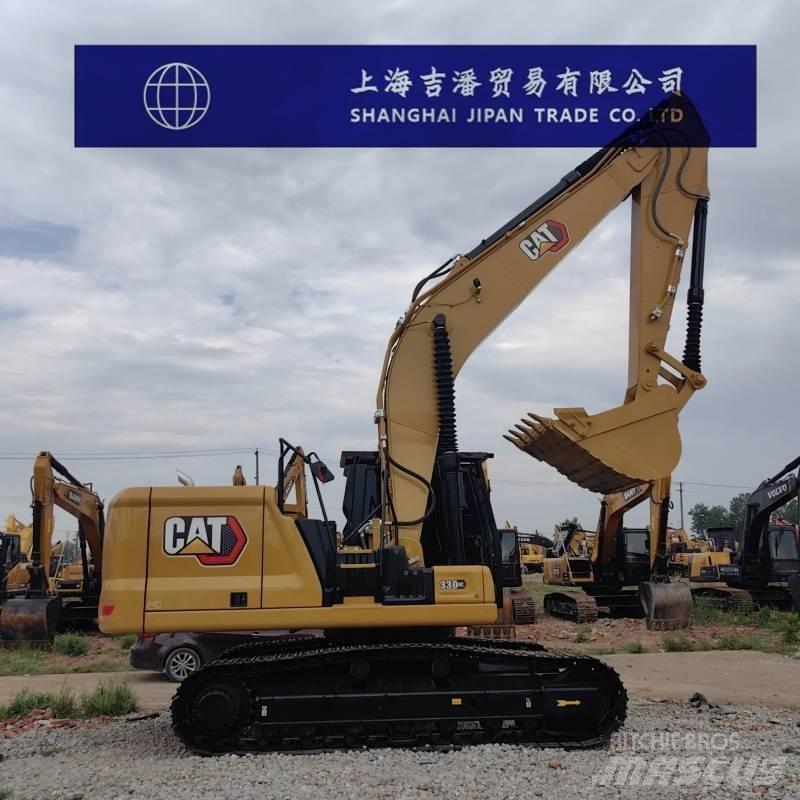

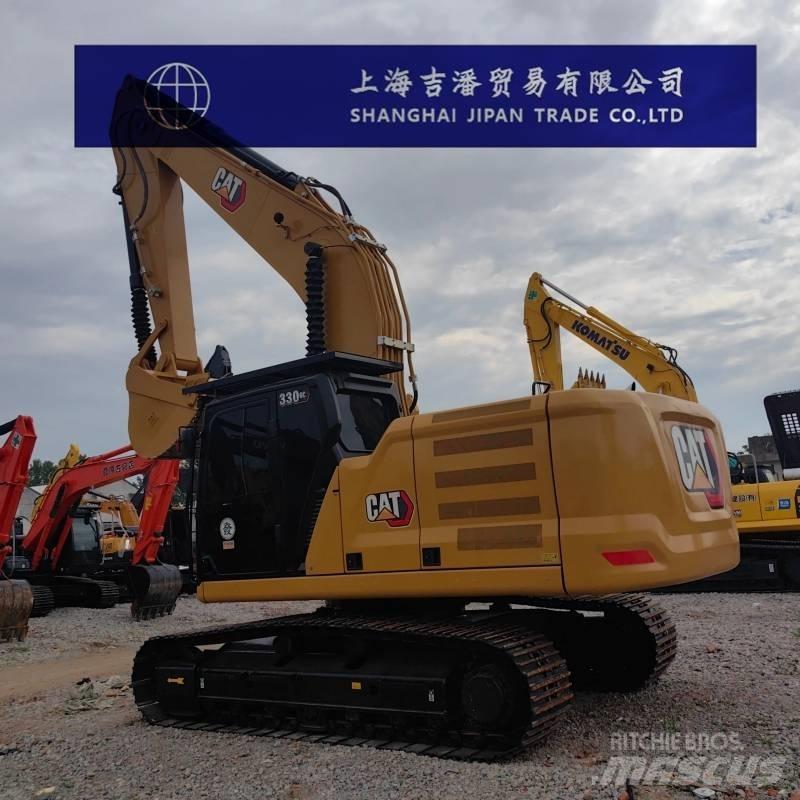

CAT 330 GC
Año de fabricación
2023
Horas de uso
600 h
País
China
Grado general
1
2
3
4
5
Mascus ID
7B4A0CF8

PRECIO

Seleccione una moneda

DETALLES

Referencia
1
Tipo
Diesel
Número de serie
1
Nº de propietarios anteriores
1
Última revisión
2025-06-30
Condiciones del chasis
Good Condition
Motor
Original
Peso bruto
30.400 kg
Potencia del motor
151 kW (205 cv)
Fabricante del motor
Original
Número de matrícula
1
Clase de emisiones
Etapa V
Capacidad de cubeta
1,60 m3
Ancho de carril
600 mm
Salida de elementos hidráulicos adicionales
560 l/min
Velocidad máxima
5,50 km/h
Dimensiones de transporte (LaxAnxAl)
10420 x 3190 x 3050 mm
Color original
Original
Longitud de palanca y draga
3.200 mm
Condiciones/Garantía
1 Year
País de fabricación
Japón
Términos de entrega
FCA, FOB, CIF, EXW
Certificados
EPA, CE
Accesorios
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.
Accesorios
válvula de seguridad por rotura de tubería, brazo -> válvula de seguridad por rotura de tubería - brazo/montacargas
válvula de seguridad por rotura de tubería, cucharón -> válvula de seguridad por rotura de tubería - palanca/draga
cesta
Aire acondicionado
Mostrar más
Más información
Specification Power: Fuel Joint venture/import by manufacturers Bucket backhoe Tonnage (tons)30 The overall working weight of the machine (kg) is 30,400 Bucket capacity (m³)1.6 Boom length (mm)6.15 The length of the boom (mm) is 3.2 Performance Rotational speed (rpm) : 11.5 The rotary torque (Nm) is 105k Bucket digging force (kN)179 The digging force of the bucket arm (kN) is 126 Power system Engine model: Cat® C7.1 Rated power (kw/rpm)151/2200 Displacement (L)7.01 Cylinder diameter × stroke (mm) : 105*135 Hydraulic system The maximum flow rate of the main pump (l/min) is 560 Working hydraulic circuit (Mpa)35 Walking hydraulic circuit (Mpa)35 Rotary hydraulic circuit (Mpa)28.4 Oil capacity Fuel tank (L)474 Hydraulic oil tank (L)147 Hydraulic System (L)310 Engine oil change volume (L) : 25 Coolant (L)25 Main body size Total transportation length (mm) : 10420 The total transportation width (mm) is 3190 The total transportation height (mm) is 3050 The total length of the tracks (mm) is 4850 Track plate width (mm)600/800 Track gauge (mm) : 2590 The ground clearance of counterweights (mm) is 1110 Minimum ground clearance (mm) : 490 The center distance of the idler wheels (mm) is 3990 Rear end turning radius (mm) : 3130 Scope of work Maximum excavation radius (mm) : 10,690 Maximum excavation depth (mm) : 7260 Maximum excavation height (mm) : 9980 Maximum unloading height (mm) : 6930 Maximum vertical excavation depth (mm) : 6030
