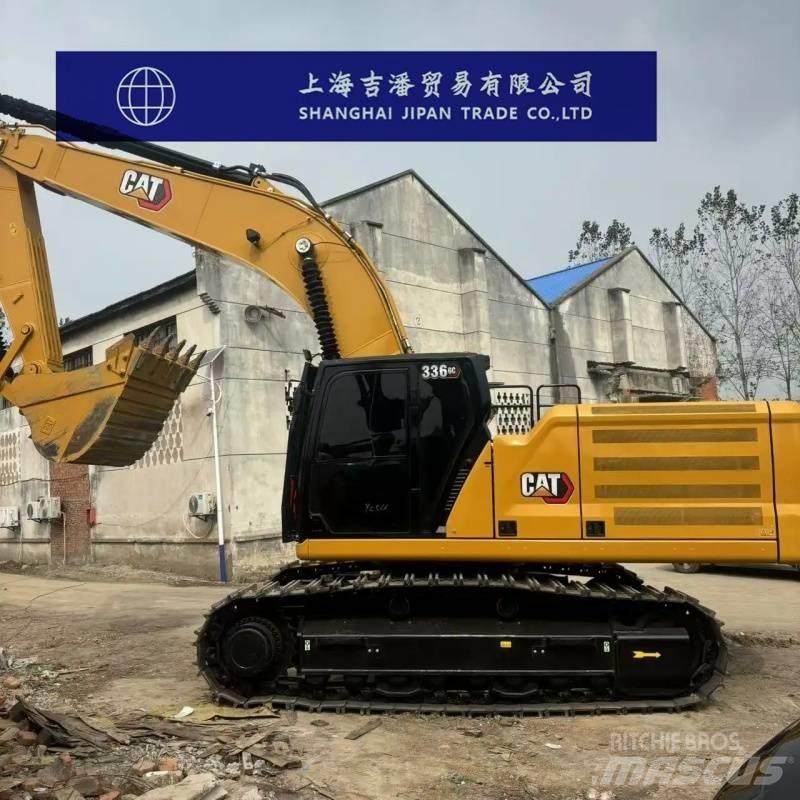

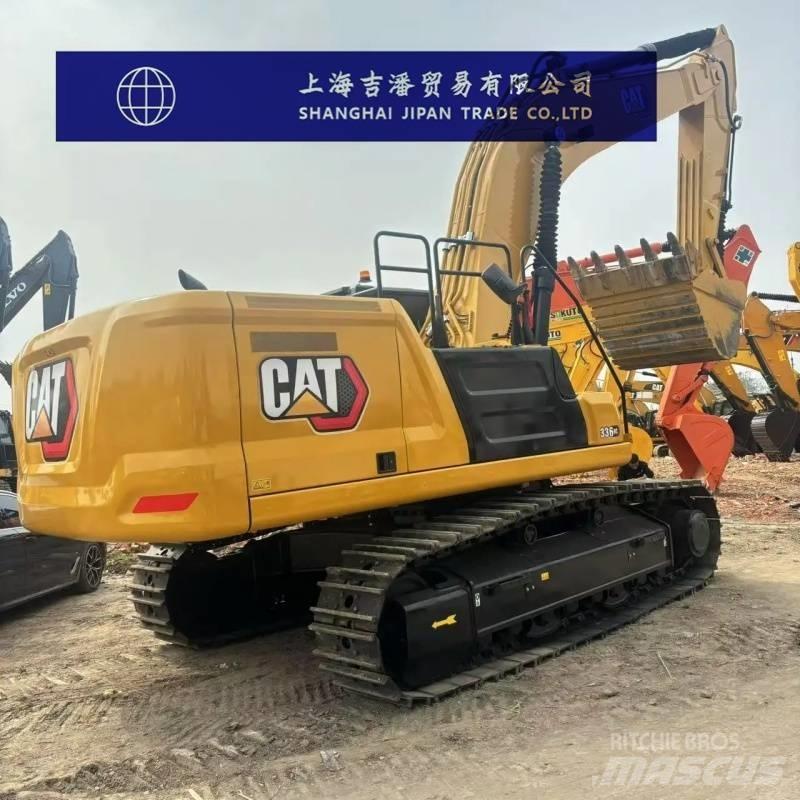

CAT 336 G C

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

卡特彼勒新一代CAT336 GC 液压挖掘机参数配置 规格 动力传统动力 厂商进口 铲斗反铲 吨位(吨)36 整机工作重量(kg)35400 铲斗容量(m³)1.88 动臂长度(mm)6500 斗杆长度(mm)3200 性能 回转速度(rpm)8.74 回转扭矩(Nm)137 行走速度(km/h)4.7 爬坡能力(%)70 铲斗挖掘力(kN)197 斗杆挖掘力(kN)148 最大牵引力(kN)297 动力系统 发动机型号C7.1 ACERT 额定功率(kw/rpm)195/2000 排量(L)7.1 缸径×行程(mm)105*135 液压系统 主泵最大流量(l/min)559 行走液压回路(Mpa)35 回转液压回路(Mpa )28 控制液压回路(Mpa )35 油类容量 燃油箱(L)600 液压油箱(L)153 液压系统(L)373 发动机油更换量(L)20 冷却液(L )19 主体尺寸 运输总长度(mm)11170 运输总宽度(mm)3190 运输总高度(mm)3170 履带总长度(mm)5030 履带轨距(mm)2590 配重离地间隙(mm)1250 最小离地间隙(mm )510 支重轮中心间距(mm)3610 后端回转半径(mm )3530 作业范围 停机面最大挖掘半径(mm)11050 最大挖掘深度(mm)7520 最大挖掘高度(mm)10300 最大卸载高度(mm)7080 最大垂直挖掘深度(mm)5660 最大有效挖掘深度(mm)7360
