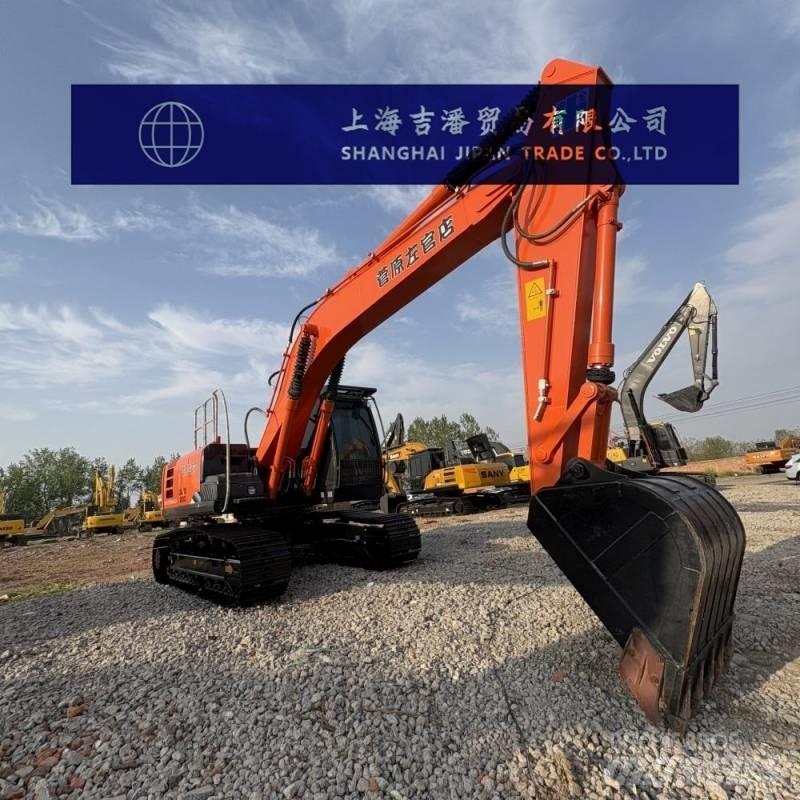

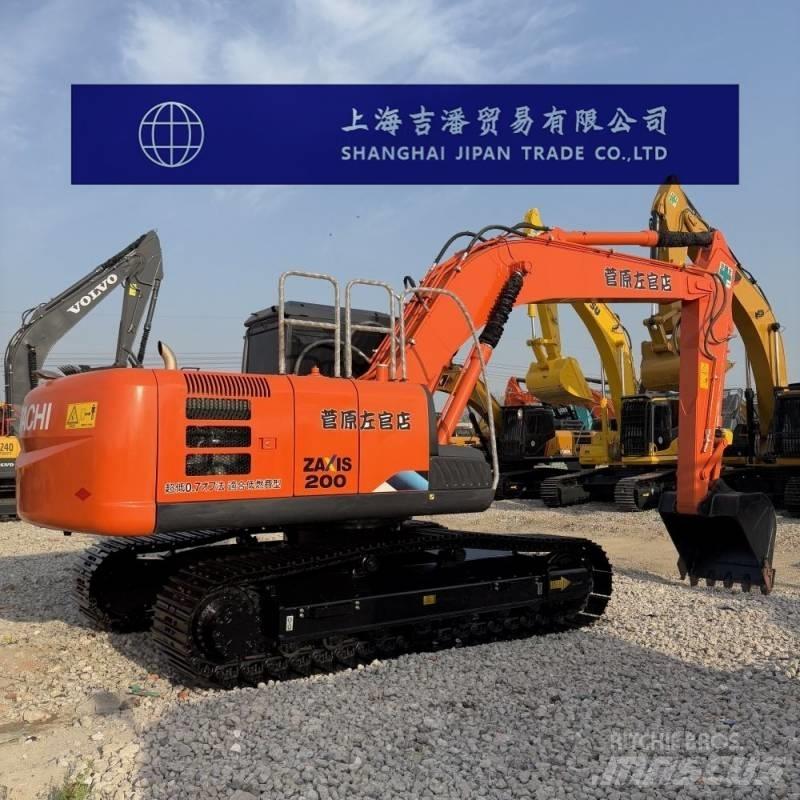

Hitachi ZX 200

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Parameter configuration of Hitachi ZX200 excavator Specification The overall working weight of the machine (kg) is 20,300 Bucket capacity (m³) : 0.8 Boom length (mm)5.68 (H-type) Boom length (mm)2.91 (H-type) Origin: Japan Tonnage (tons)20 Power Traditional Power Bucket backhoe Joint venture/import by manufacturers Power Traditional Power Performance Rotational speed (rpm) : 13.3 Walking speed (km/h) : 3.5/5.5 Climbing ability (%)70/35° Ground specific pressure (Kpa) : 45 Bucket digging force (kN)151 The digging force of the boom (kN) is 109 Power system Engine model: ISUZU ISuzu AI-4HK1X Rated power (kw/rpm)122/2000 Displacement (L)5.193 Number of cylinders (4) The cooling method is water cooling The working mode is direct injection, turbocharging, with intercooler Hydraulic system Main pump type variables: 2 plunger pumps + 1 gear pump The main overflow set pressure (Mpa) is 34.3 Walking hydraulic motor type: Variable piston pump ×2 Rotary hydraulic motor type: quantitative plunger pump ×1 Working hydraulic circuit (Mpa)34.3 Walking hydraulic circuit (Mpa)34.3 Rotary hydraulic circuit (Mpa)32.4 Pilot oil circuit (MPa)3.9 Is the hydraulic crushing pipeline standard? No Oil capacity Fuel tank (L)400 Hydraulic oil tank (L)135(full tank 200) Engine oil change volume (L)23 Main body size The total transportation length (mm) is 9520 The total transportation width (mm) is 2860 Total transportation height (mm) : 3010 The total height of the cab (mm) is 2950 The ground clearance of the counterweight (mm) is 1030 Track grounding length (mm)3370 The total length of the track (mm) is 4170 Track plate width (mm) : 600 The total width of the tracks (mm) is 2800 Track gauge (mm) : 2200 Minimum ground clearance (mm) : 450 Rear end turning radius (mm) : 2750 Scope of work Maximum excavation radius (mm) : 9920 Maximum excavation depth (mm) : 6670 Maximum excavation height (mm) : 10040 Maximum unloading height (mm) : 7180 The maximum vertical excavation depth (mm) is 5990 Lifting or deepening with a bulldozer (mm) without a bulldozer
