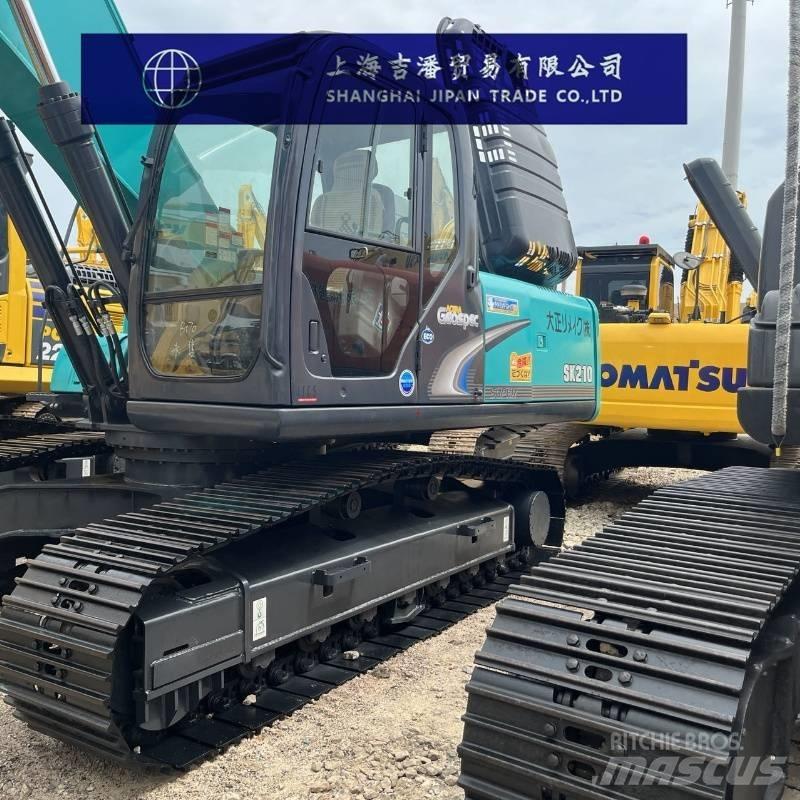

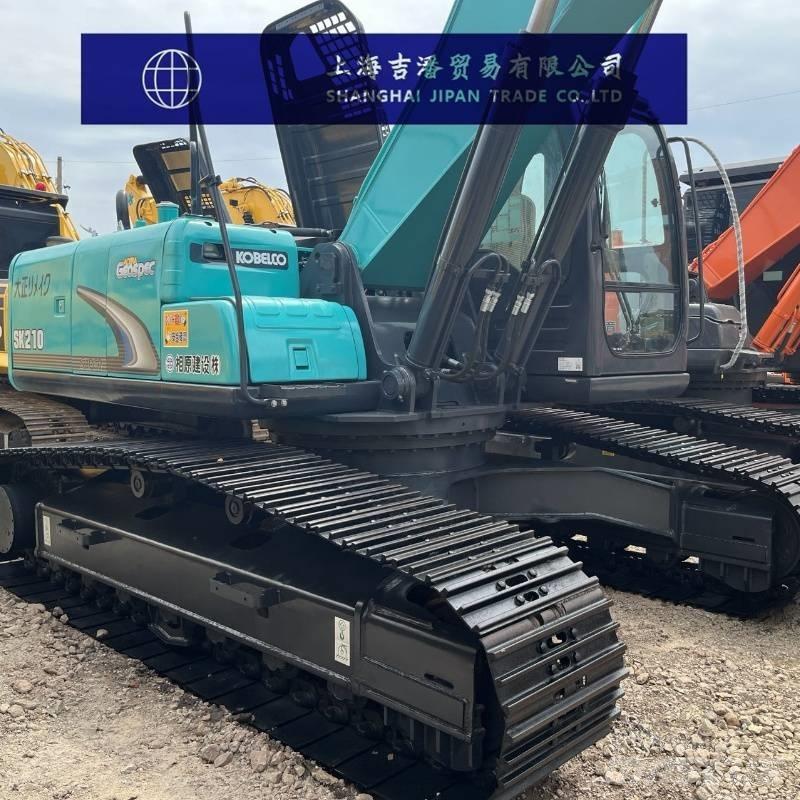

Kobelco SK 210
Precio sin IVA
Imprimir
INFORMACIÓN
Grupo de productos
Excavadoras de cadenas
Marca / modelo
Kobelco SK 210
Año de fabricación
2023
Horas de uso
600 h
País
China
Grado general
1
2
3
4
5
Mascus ID
A848013B
PRECIO
Seleccione una moneda
DETALLES
Referencia
1
Tipo
Diesel
Número de serie
1
Nº de propietarios anteriores
1
Última revisión
2025-06-25
Condiciones del chasis
Good Condition
Motor
Original
Peso bruto
21.200 kg
Potencia del motor
114 kW (155 cv)
Fabricante del motor
Original
Número de matrícula
1
Clase de emisiones
Etapa V
Capacidad de cubeta
1 m3
Ancho de carril
600 mm
Velocidad máxima
6 km/h
Dimensiones de transporte (LaxAnxAl)
9450 x 2990 x 2980 mm
Color original
Original
Longitud de palanca y draga
2.900 mm
Condiciones/Garantía
1 Year
País de fabricación
Japón
Términos de entrega
FCA, FOB, CIF, EXW
Certificados
EPA, CE
Accesorios
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Jason
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Accesorios
válvula de seguridad por rotura de tubería, cucharón -> válvula de seguridad por rotura de tubería - palanca/draga
cesta
Aire acondicionado
Elementos hidráulicos adicionales
Pre filtro de motor
Cuchara
Desconectador de batería
Baliza giratoria
Calentador diesel
Joystick de control
Cuchara excavadora estándar
Cuchara de cable
Más información
Specification
Power, traditional power
Joint venture/import by manufacturers
Bucket backhoe
Tonnage (tons)20
The working weight of the entire machine (kg) is 21,200-21,900
Bucket capacity (m³)1
Performance
Rotational speed (rpm)12.5
Walking speed (km/h)6.0/3.6
Climbing ability (%)70(35°)
Grounding specific pressure (Kpa)34-44 {0.35-0.45}
Maximum tractive force (kN)229{23,300}
Power system
Engine model: Hino J05E
Rated power (kw/rpm) : 114/2000
Displacement (L) : 5.123
The cooling method is water cooling
The working mode is direct injection, water-cooled, four-stroke, turbocharged, and built-in intercooler
Oil capacity
Fuel tank (L)370
Hydraulic oil tank (L)146
Main body size
Total transportation length (mm) : 9450
Total transportation width (mm) : 2990
Total transportation height (mm) : 2980
Vehicle width (mm) : 2710
The total length of the track (mm) is 4450
The width of the track plate (mm) is 600/700/800
Minimum ground clearance (mm)450
The ground clearance of counterweights (mm) is 1060
The rear end rotation radius (mm) is 2750
Scope of work
The maximum excavation radius (mm) is 9000
The maximum excavation radius (mm) of the shutdown surface is 5270
Maximum excavation depth (mm) : 6700
Maximum excavation height (mm) : 9720
The maximum vertical excavation depth (mm) is 6100
The maximum effective excavation depth (mm) is 6520
