INFORMACIÓN

Grupo de productos
Excavadoras de cadenas
Marca / modelo

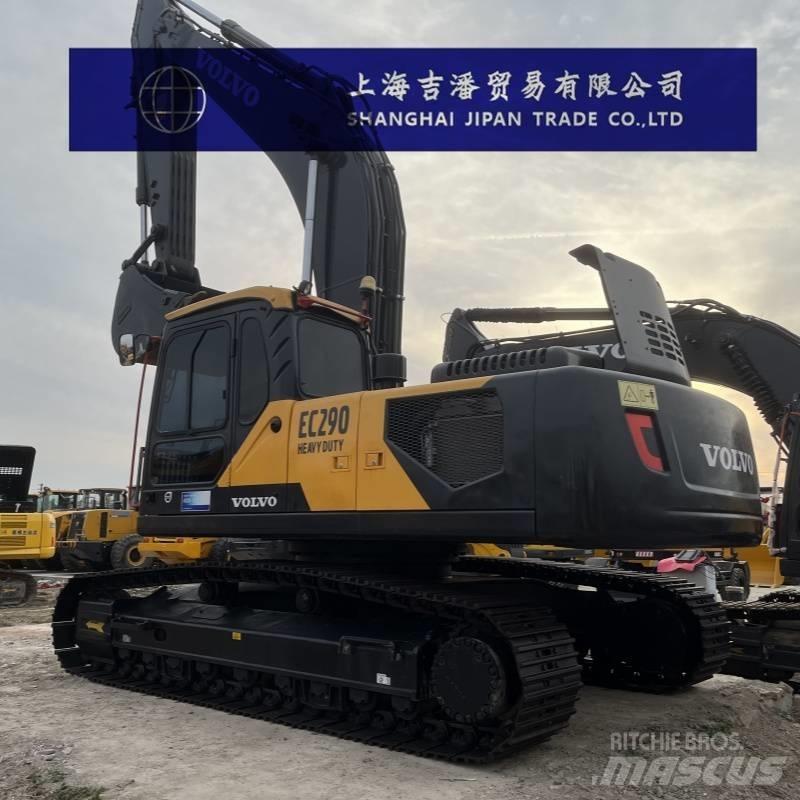

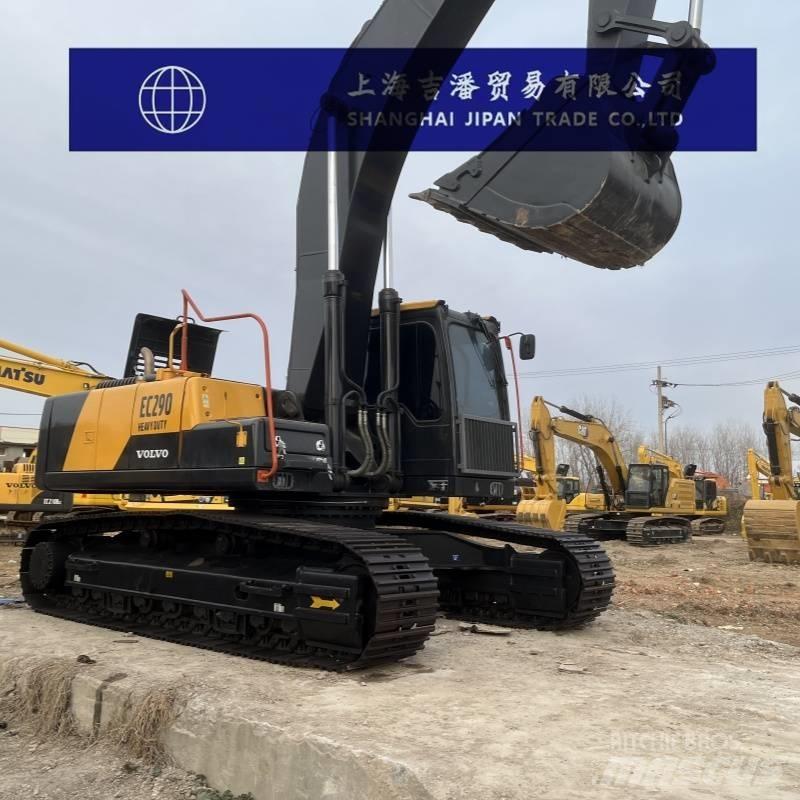

Volvo EC 290
Año de fabricación
2024
Horas de uso
550 h
País
China
Grado general
1
2
3
4
5
Mascus ID
C956A5B6

PRECIO

Seleccione una moneda

DETALLES

Referencia
1
Tipo
Diesel
Número de serie
1
Nº de propietarios anteriores
1
Última revisión
2025-07-03
Condiciones del chasis
Good Condition
Motor
Original
Peso bruto
29.900 kg
Potencia del motor
153 kW (208 cv)
Fabricante del motor
Original
Número de matrícula
1
Clase de emisiones
Etapa V

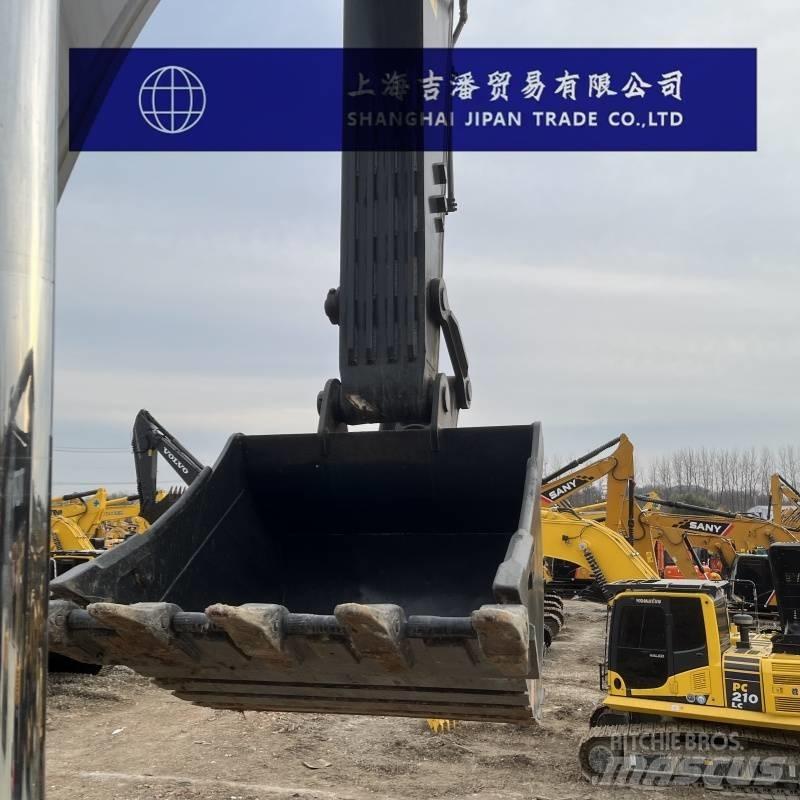

Capacidad de cubeta
1,30 m3
Ancho de carril
700 mm
Salida de elementos hidráulicos adicionales
250 l/min
Velocidad máxima
5,20 km/h
Dimensiones de transporte (LaxAnxAl)
10400 x 3190 x 3290 mm
Color original
Original
Longitud de palanca y draga
3.050 mm
Condiciones/Garantía
1 Year
País de fabricación
Corea del Sur
Términos de entrega
FCA, FOB, CIF, EXW
Certificados
EPA, CE
Accesorios
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.
Accesorios
válvula de seguridad por rotura de tubería, brazo -> válvula de seguridad por rotura de tubería - brazo/montacargas
válvula de seguridad por rotura de tubería, cucharón -> válvula de seguridad por rotura de tubería - palanca/draga
cesta
Aire acondicionado
Mostrar más
Más información
Parameter configuration of Volvo EC290 excavator Specification The working weight of the entire machine (kg) is 28,500-29,900 Bucket capacity (m³) : 1.3 Boom length (mm) : 6200 (Heavy boom) The length of the boom (mm) is 3050 Origin: South Korea Tonnage (tons)29 Joint venture/import by manufacturers Power Traditional Power Bucket backhoe Joint venture/import by manufacturers Power Traditional Power Performance Rotational speed (rpm) : 10.2 Walking speed (km/h) : 3.3/5.2 Climbing ability (%)70% (35°) Ground pressure (Kpa)54.1 (when the counterweight is 5.4 tons) Bucket digging force (kN) : 181.4 (standard mode) /198.4 (force application mode) Bucket shaft digging force (kN) : 127.6 (standard mode) /139.5 (force application mode) The maximum traction force (kN) is 230.5 Power system Engine model: VOLVO D7D Rated power (kw/rpm) : 153/1900 Displacement (L)7.1 Number of cylinders (6 Cylinder diameter × stroke (mm)108×130 The cooling method is water cooling Working form: Turbocharged; Electronic control direct injection Pressurized air cooler Hydraulic system Main pump type variable: Axial piston pump ×2+ gear pump The maximum flow rate of the main pump (l/min) is 250×2+19 The type of walking hydraulic motor is variable axial piston motor ×2 Rotary hydraulic motor type: Axial piston hydraulic motor (with mechanical braking) Working hydraulic circuit (Mpa)31.4/34.3 Walking hydraulic circuit (Mpa)34.3 Rotary hydraulic circuit (Mpa)26.5 Control hydraulic circuit (Mpa)3.9 Boom cylinders - number × cylinder diameter × stroke (mm)2-140×1480 Bucket rod cylinder - number × cylinder diameter × stroke (mm)1-150×1745 Bucket cylinder - Number × cylinder diameter × stroke (mm)1-140×1140 Oil capacity Fuel tank (L)470 Hydraulic oil tank (L)195 Hydraulic system (L)400 Engine oil change volume (L)32 Coolant (L)44 Main body size The total length of transportation (mm) is 10,400 The total transportation width (mm) is 3190 The total transportation height (mm) is 3290 The total height of the cab (mm) is 3030 The ground clearance of the counterweight (mm) is 1145 Track grounding length (mm) : 4015 The total length of the tracks (mm) is 4870 Track plate width (mm) : Three-tooth 600/700/800/900; Two teeth 700 The total width of the tracks (mm) is 3190 Track gauge (mm) : 2590 Minimum ground clearance (mm) : 480 The minimum turning radius (mm) of the front working device is 4180 Rear end turning radius (mm) : 3050

上海吉潘贸易有限公司

上海市松江区车墩镇莘莘路32号3799 201600 上海 上海 China
