INFORMACIÓN

Grupo de productos
Martinetes vibradores
Marca / modelo
ICE 223
Año de fabricación
1992
Estado
Reacondicionado
Ubicación
Etten Leur, Noord-Brabant
País
Países Bajos
Grado general
1
2
3
4
5
Mascus ID
B3103FA4

DETALLES

Referencia
223-EK
Última revisión
2025-03-01
Nº de propietarios anteriores
2
Se adapta a las máquinas siguientes
This is an ideal vibro to be used with a 30-60t capacity crane
Clase de emisiones
Etapa II
Peso de transporte
2.600 kg
Fabricante del motor
DAF XF390
Dimensiones de transporte (LaxAnxAl)
2615 x 1590 x 440 mm
País de fabricación
Países Bajos
Términos de entrega
FCA, EXW
Certificados
CE
Accesorios

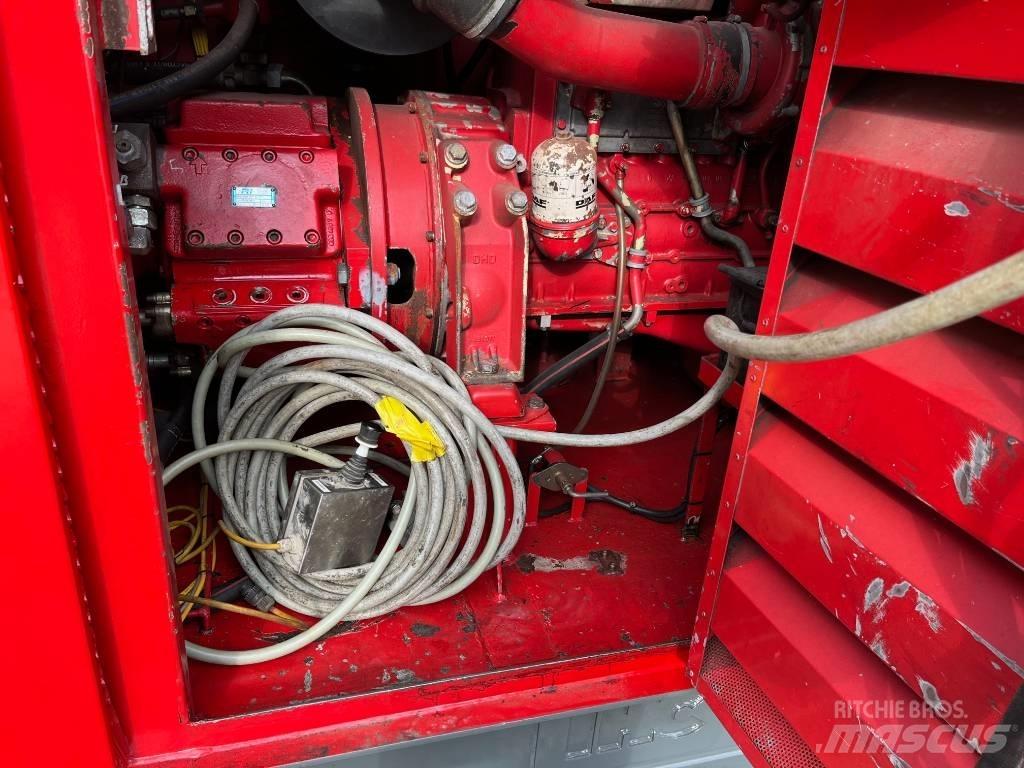

New hydraulic hose bundle of 30 meters Overhauled universal sheetpile clamp IHC FPP20SNZ hydraulic power pack
Más información

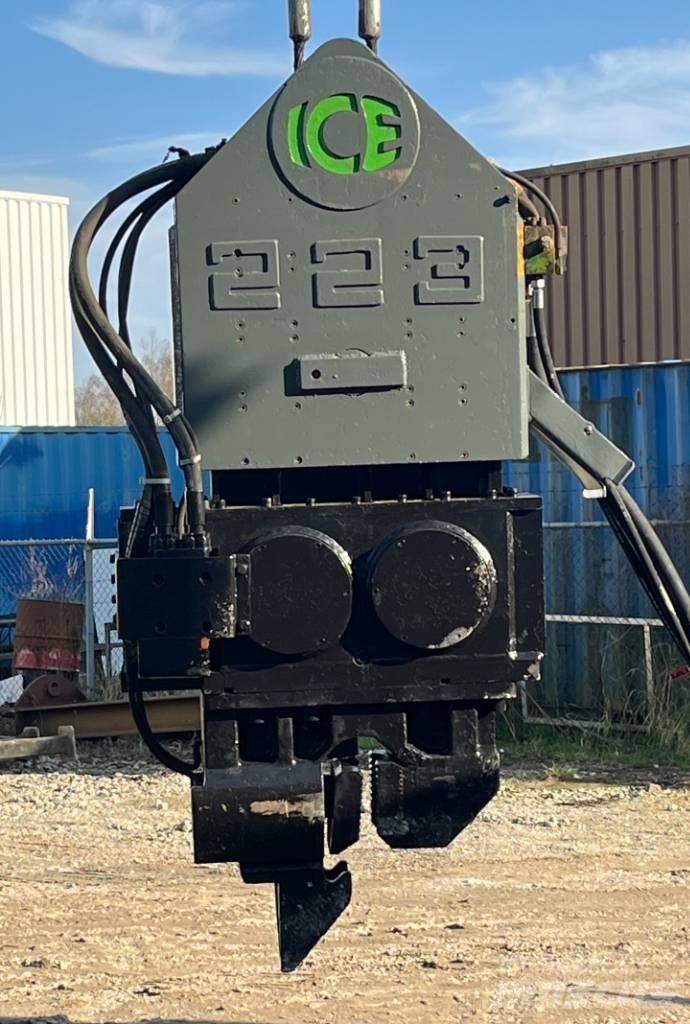

This original ICE 223 (made in the Netherlands) is an interesting vibratory hammer. Due to its compact design the vibratory hammer is light in weight compared to other models with this type of power. The 2 excenter type of construction guarantees a very long life-time and makes it slim as well. This model has an overhauled 75TU clamp and is fitted with new hydraulic hoses. The vibratory hammer is offered with a mulitpurpose IHC power pack which is also suitable to power IHC Hydrohammers, Junttan hammers and different type of rotary heads. The year of manufacture of the power pack is 2004. Eccentric moment 11.6 kgm Max. centrifugal force 670 kN Max. frequency 2300 RPM Max. amplitude 12.6 mm Max. static line-pull 400 kN Max. operating pressure 350 bar Required oil flow 300 l/min. Total weight incl clamp 2.600 kg Year of manufacture 1992 Hydr. Hose bundle new 30m included ICE universal sheetpile clamp included
