INFORMACIÓN

Grupo de productos
Mini excavadoras < 7t
Marca / modelo

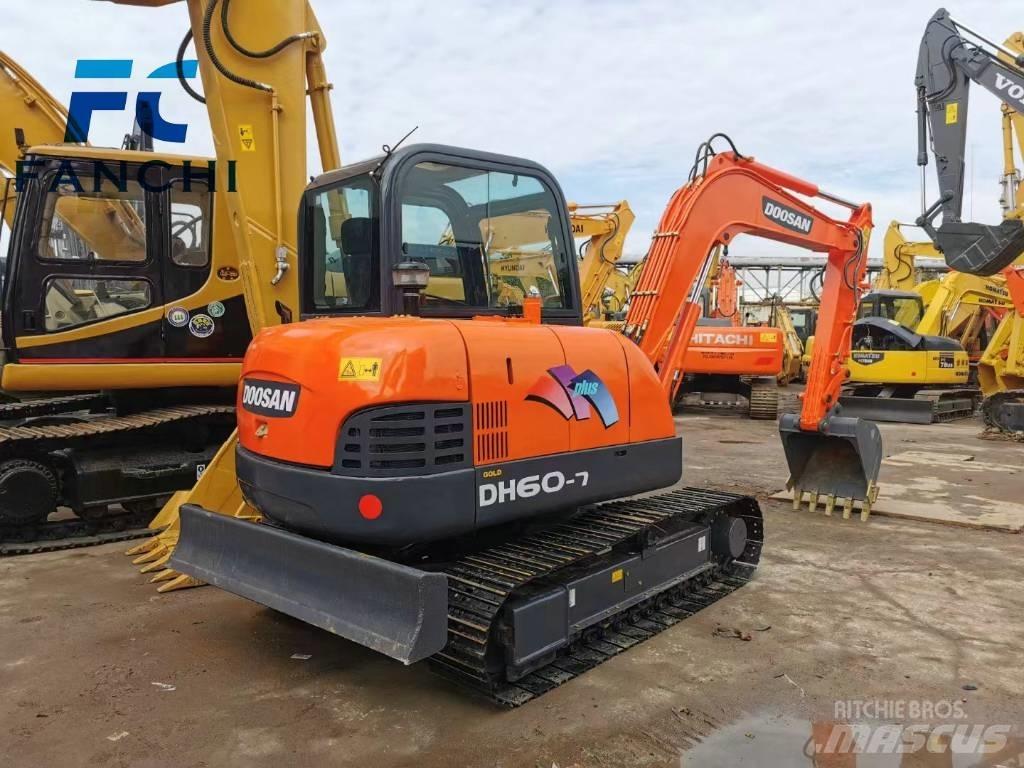

Doosan DH 60
Año de fabricación
2023
Horas de uso
600 h
País
China
Grado general
1
2
3
4
5
Mascus ID
86AB9175

PRECIO

Seleccione una moneda

DETALLES

Nº de propietarios anteriores
1
Condiciones del chasis
good
Peso bruto
6.000 kg
Ancho de carril
400 mm
Capacidad de cubeta
2 m3
Dimensiones de transporte (LaxAnxAl)
585018802.575 m
Color original
YELLOW
Longitud de palanca y draga
1.990 mm

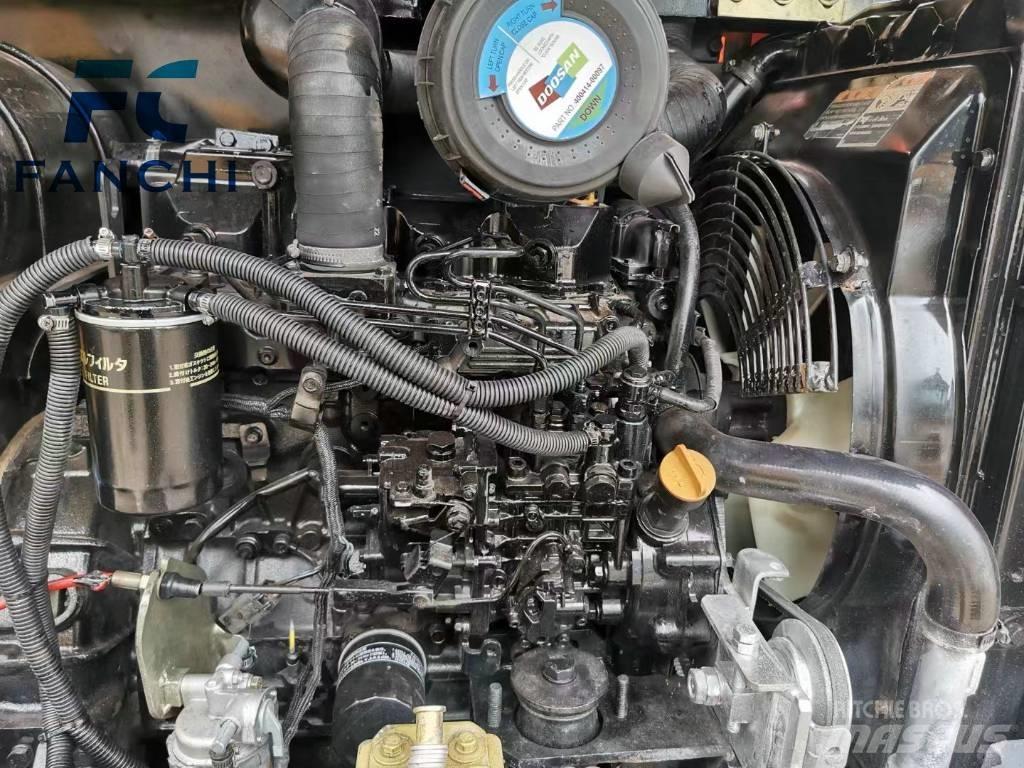

Motor
洋马 4TNV94L
Potencia del motor
38,1 kW (51,8 cv)
Fabricante del motor
JAPAN
Condiciones/Garantía
good
País de fabricación
Japón
Términos de entrega
FOB, CIF, EXW
Certificados
EPA, CE, ANSI, AS, CSA, EAC GOST, TRUA, JIS, TÜV, ASME
Accesorios
All the auxiliary accessories can be provided for you. The above information is for reference only, and the specific details need to be confirmed with the factory.
Accesorios
Acoplador rápido automático/hidráulico
instalacion de martillo
cesta
GPS
Mostrar más
Más información
Overall Machine Parameters: - Total operating weight of the whole machine: 5550 kg - Bucket capacity: 0.09 - 0.2 m³ - Boom length: 3000 mm - Arm length: 1600 mm - Total transport length: 5850 mm - Total transport width: 1880 mm - Total transport height: 2575 mm - Total height of the cab: 2575 mm - Width of the upper carriage: 1885 mm - Track ground contact length: 1990 mm - Total track length: 2540 mm - Track shoe width: 400 mm - Total track width: 1880 mm - Track gauge: 1480 mm - Minimum ground clearance: 350 mm - Rear swing radius: 1650 mm Performance Parameters: - Bucket digging force: 37.7 kN - Arm digging force: 28.4 kN - Maximum digging radius: 6150 mm - Maximum digging depth: 3820 mm - Maximum digging height: 5760 mm - Maximum unloading height: 4030 mm Engine Parameters: - Engine model: Yanmar 4TNV94L - Rated power: 38.1 kW/2200 rpm - Number of cylinders: 4 - Cooling method: Water cooling - Working mode: Air-to-air intercooling Hydraulic System Parameters: - Main pump type: Variable axial piston pump × 2 - Maximum flow rate of the main pump: 55×2 L/min - Working hydraulic circuit pressure: 20.6 MPa - Travel hydraulic circuit pressure: 20.6 MPa - Swing hydraulic circuit pressure: 21.6 MPa - Flow rate of the pilot pump: 9.9 L/minMostrar más

Shanghai FanChi Machinery trading Co., LTD

hongmei Road 200000 Minhang Shanghai 上海 China
