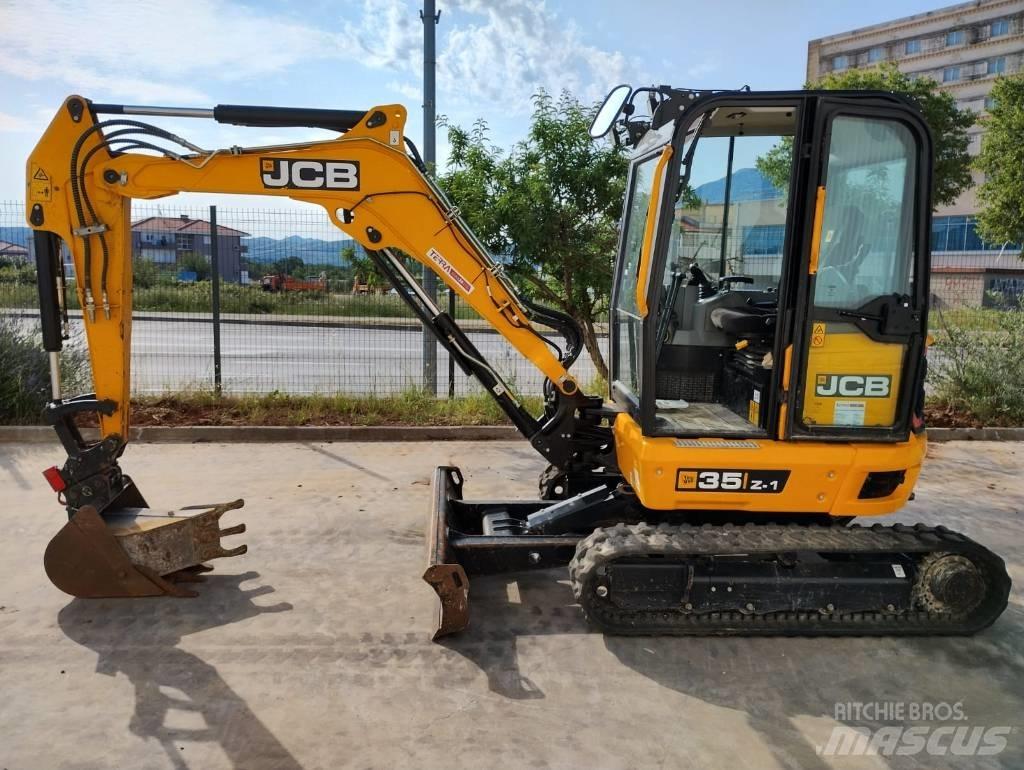

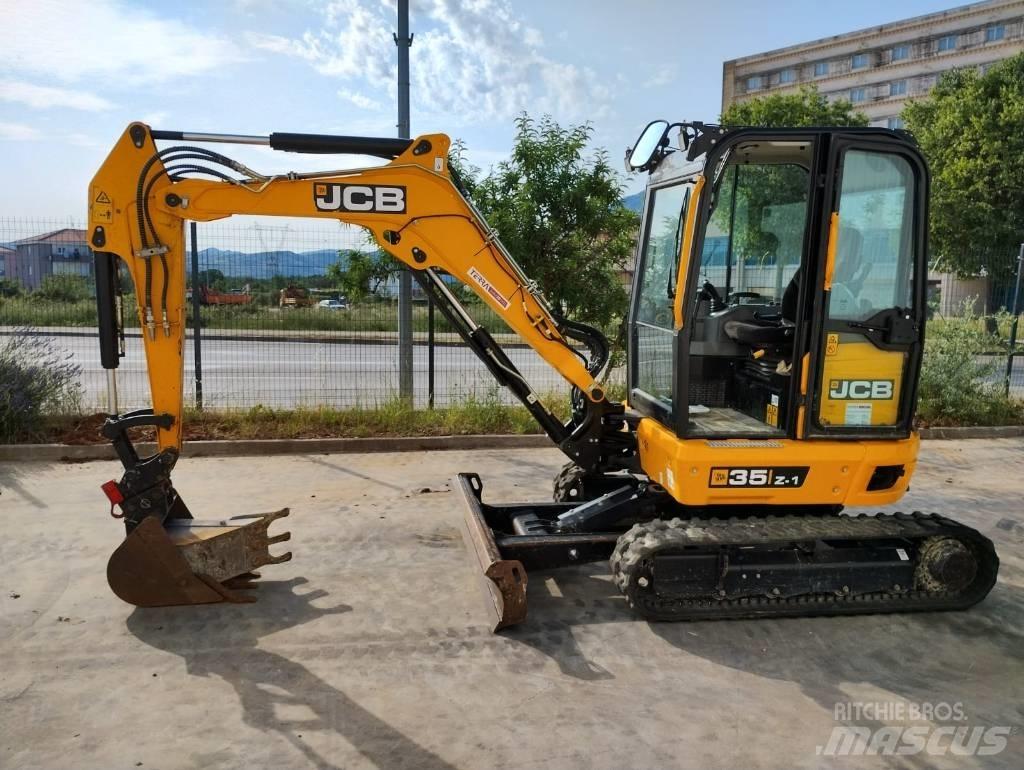

JCB 35 Z-1

Name: JCB 35 Z-1
Brand: JCB
SKU: AB295998
Price: 55900 EUR
Availability: InStock

Precio sin IVA

Favorito

Guardar búsqueda

Imprimir

INFORMACIÓN

Grupo de productos

Mini excavadoras < 7t

Marca / modelo

JCB 35 Z-1

Año de fabricación

2023

Horas de uso

476 h

Estado

Reacondicionado

Ubicación

Dugopolje, Splitsko-dalmatinska županija

País

Croacia

Mascus ID

AB295998

PRECIO

Seleccione una moneda

DETALLES

Referencia

3353949

Número de serie

3353949

Tipo

Diesel

Peso bruto

3.556 kg

Clase de emisiones

Etapa V

Ancho de carril

300 mm

Dimensiones de transporte (LaxAnxAl)

4851 x 1750 x 2482 mm

Color original

Žuta

Motor

Diesel

Potencia del motor

18 kW (24,5 cv)

Fabricante del motor

JCB

País de fabricación

Reino Unido

Términos de entrega

EXW

Más información

Model: JCB 35Z-1 Year of Manufacture: 2023 Operating Hours: 476 Included attachments: Mechanical quick coupler for tool exchange Digging buckets: 300 mm and 600 mm Tilting grading bucket Hydraulic hammer line Air conditioning Additional machine specifications: Engine: Engine Model: Perkins 403J-17 (EU Stage V) Fuel Type: Diesel Cooling System: Water-cooled Engine Power: 18.4 kW at 2200 rpm Max. Torque (ISO 14396): 91.9 Nm at 1600 rpm Engine Displacement: 1662 cm³ Maximum Gradeability: 30° Electric Starter Motor: 2 kW Battery: 12V / 80Ah Alternator: 85 A (air-cooled) Hydraulic System: Pump Capacity: 38 cm³ Rated Flow at 2000 rpm: 76 l/min Main Pressure (digging/driving): 250 bar Swing Pressure (upper structure): 216 bar Auxiliary Hydraulic Pressure (low): Standard: 190 bar Adjustable: 120 – 250 bar Auxiliary Hydraulic Pressure (high): Standard: 190 bar Adjustable: 120 – 250 bar Auxiliary Hydraulic Flow (low): 30 l/min Auxiliary Hydraulic Flow (high): 70 l/min Pump Type: Variable displacement axial piston pump Undercarriage: Number of Top Rollers: 1 Number of Bottom Rollers: 4 Track Width (rubber): 300 mm Track Tensioning: Grease-adjusted Travel Speed – Low: 2.8 km/h Travel Speed – High: 4.5 km/h Weights: Operating Weight: 3556 kg Transport Weight: 3371 kg Dimensions: Track Length on Ground: 1590 mm Overall Upper Structure Width: 1550 mm Height to Cab Top: 2482 mm Ground Clearance: 275 mm Undercarriage Width: 1400 mm Overall Width with Tracks: 1750 mm Overall Length (with standard arm): 4851 mm Track Height: 480 mm Model: JCB 35Z-1 Godina proizvodnje: 2023 Broj radnih sati: 476 Od priključaka s njime dolazi: - Mehanička brza spojka za izmjenu radnih alata - Kopačke žlice 300 mm i 600 mm - Nagibna planirna žlica - Instalacija za čekić - Klima uređaj Ostale specifikacije stroja: Motor: Model motora: Perkins 403J-17 (EU Stage V) Gorivo: Dizel Hlađenje: Vodeno Snaga motora: 18.4 kW pri 2200 o/min Maks. okretni moment (ISO 14396): 91.9 Nm pri 1600 o/min Obujam motora: 1662 cm³ Maksimalni nagib (penjanje): 30° Elektromotor startera: 2 kW Baterija: 12V / 80Ah Alternator: 85 A (zračno hlađenje) Hidraulički sustav: Kapacitet pumpe: 38 cm³ Nazivni protok pri 2000 o/min: 76 l/min Glavni tlak (iskop/vožnja): 250 bar Glavni tlak zakretanja gornje konstrukcije: 216 bar Pomoćni hidraulički tlak (niski): Standard: 190 bar Podesivo: 120 – 250 bar Pomoćni hidraulički tlak (visoki): Standard: 190 bar Podesivo: 120 – 250 bar Pomoćni hidraulički protok (niski): 30 l/min Pomoćni hidraulički protok (visoki): 70 l/min Vrsta pumpe: Klipna s promjenjivim protokom Podvozje: Broj gornjih valjaka: 1 Broj donjih valjaka: 4 Širina gusjenica (guma): 300 mm Zatezanje gusjenica: mast Brzina vožnje – spora: 2.8 km/h Brzina vožnje – brza: 4.5 km/h Težine: Radna težina: 3556 kg Transportna težina: 3371 kg Dimenzije: Duljina gusjenice na tlu: 1590 mm Ukupna širina gornje konstrukcije: 1550 mm Visina do vrha kabine: 2482 mm Prolaz ispod stroja (udaljenost od tla): 275 mm Širina gusjeničnog podvozja: 1400 mm Ukupna širina s gusjenicama: 1750 mm Ukupna duljina stroja (sa standardnim krakom): 4851 mm Visina gusjenice: 480 mmMostrar más
