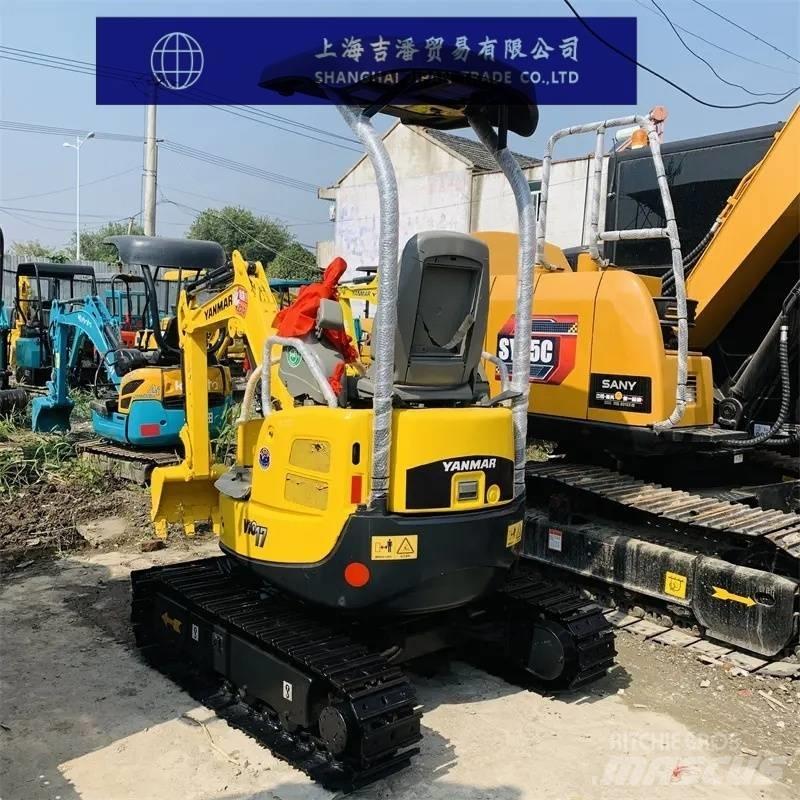

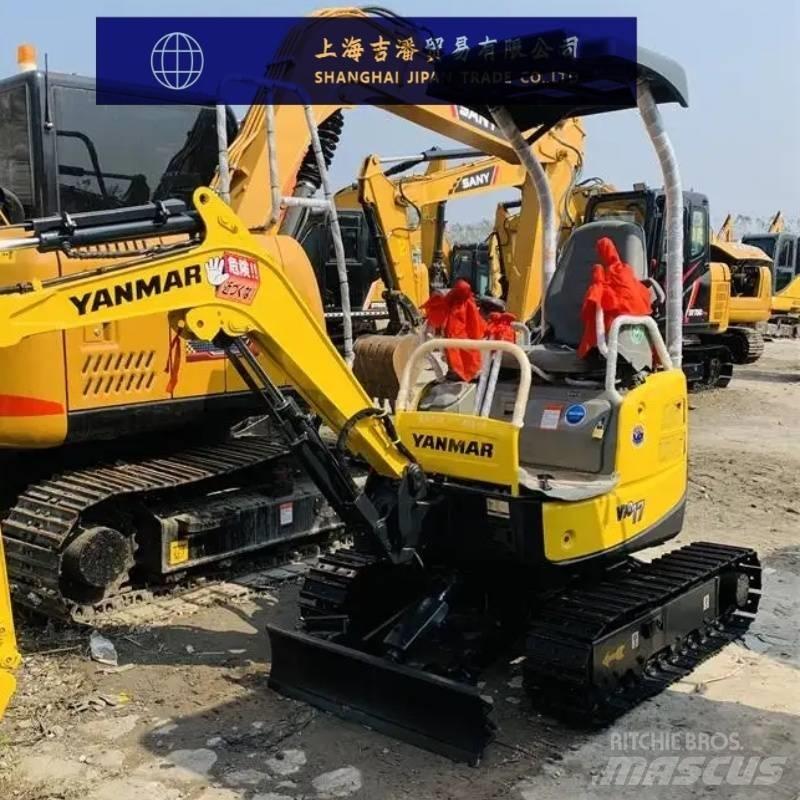

Yanmar Vio 17

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

洋马Vio17挖掘机 参数配置 规格 动力传统动力 厂商合资/进口 铲斗反铲 吨位(吨)1 整机工作重量(kg)1700 铲斗宽度(mm)450 铲斗容量(m³)0.05 性能 回转速度(rpm)9.5 行走速度(km/h)高 3.8 低 1.9 接地比压(Kpa)橡胶履带28/钢制29 铲斗挖掘力(kN)15.2 动力系统 发动机型号洋马 3TNV70-XBV 额定功率(kw/rpm)10.1/2200 气缸数(个)3 冷却方式水冷 工作形式立式水冷；3缸；直喷 液压系统 主泵最大流量(l/min)17.6×2+13.2 主溢流设定压力(Mpa)20.6×2+16.7×1 油类容量 燃油箱(L)20 主体尺寸 运输总长度(mm)3450 运输总宽度(mm)1280（950） 运输总高度(mm)2370 驾驶室全高(mm)2370 履带总长度(mm)1525 履带板宽度(mm)230 履带总宽度(mm)1280 履带轨距(mm)1050 最小离地间隙(mm )175 前段工作装置最小回转半径(mm)1520 后端回转半径(mm )640 作业范围 最大挖掘半径(mm)3710 最大挖掘深度(mm)2200 最大挖掘高度(mm)3690 最大卸载高度(mm)2630 最大垂直挖掘深度(mm)1850 动臂回转角度(左/右°)42/75 推土板宽度×高度(mm)950/1280×235 推土铲举升或推深(mm)260/205
