Ozgul LW4 EU FIX

Name: Ozgul LW4 EU FIX
Brand: Ozgul
SKU: C189DDB8
Price: 48000 EUR
Availability: InStock

Precio sin IVA

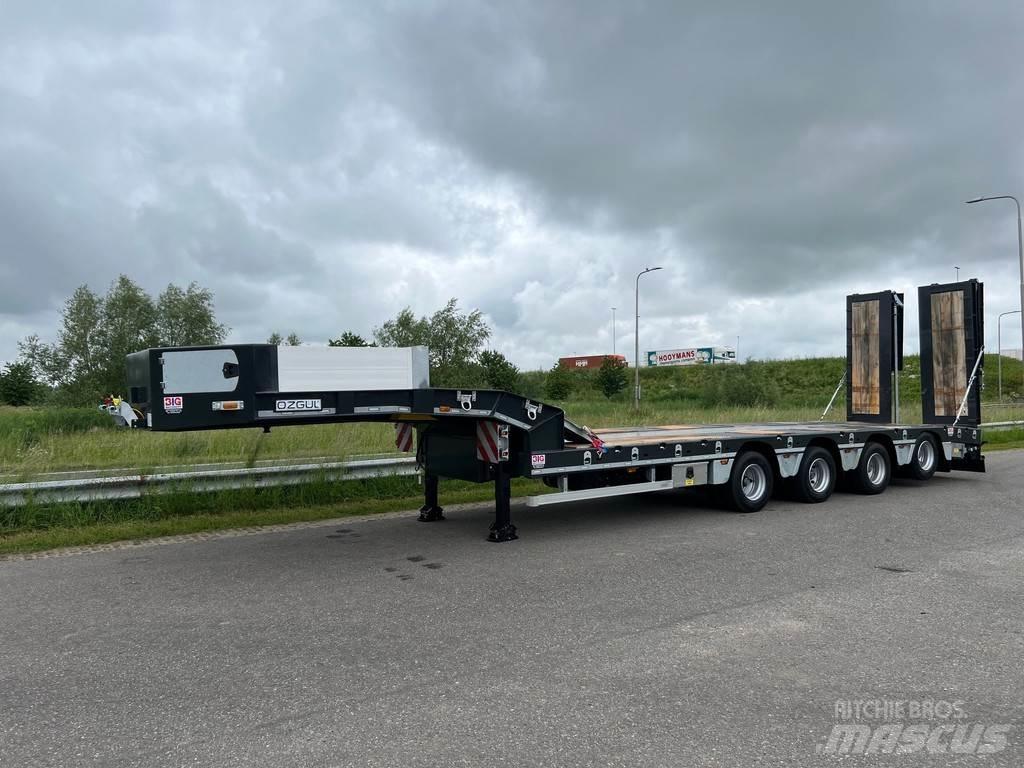

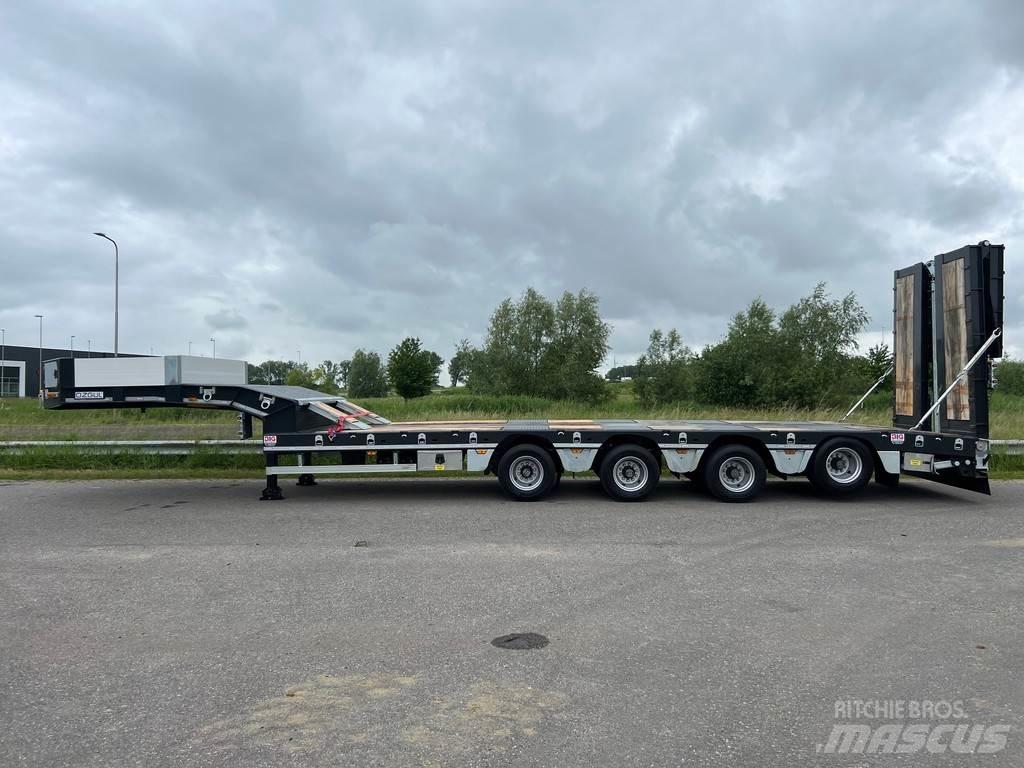

Ozgul LW4 EU FIX Semirremolques de góndola rebajada

Favorito

Guardar búsqueda

Imprimir

INFORMACIÓN

Grupo de productos

Semirremolques de góndola rebajada

Marca / modelo

Ozgul LW4 EU FIX

Año de fabricación

2024

Estado

Nuevo/sin usar

Ubicación

BIG 1 BIG Machinery B.V. (Schiemerik 1)

País

Países Bajos

Mascus ID

C189DDB8

PRECIO

Seleccione una moneda

DETALLES

Año de registro

2024

Referencia

00032308

Fabricante / carrocería

OZGUL

País de fabricación

Turquía

Accesorios

EN: ABS, EBS, Lifting axle, Spare tyre NL: ABS, EBS, Liftas, Reserveband

Más información

TECHNICAL SPECIFICATIONS MASSES & DIMENSIONS -Gross Vehicle Weight (kg) : 70.000 -Loading Platform Length (mm) : 9.000 -Weight of Axle Group (kg) : 48.000 -Total Lenght (mm) : 13.550 -Kingpin Capacity (kg) :22.000 -Total Width (mm) : 2.550 -Curb Weight (kg) : 13.000 -Loading Platform Height (mm) : 920 -Pay Load (kg) : 57.000 -Height of 5.th Wheel (mm) : 1.310 CONSTRUCTIONS -Base Chassis -Heavy duty and extra durability designed BOX type chassis All welded S355 steel chassis -Outer frame is UPE 240 profile -Welding (Chassis) : Automatic ARC submerged -Welding (Superstructure) : Automatic robot welding -Axle (Type) : Özkoç Trax or Osman Koç Turkish Brand -Drum brakes 4 x 12 Ton axles -Axle Lifting : 1st axle automatic 4th axle manuel lifting -Suspension (Type) : Air Suspension -Steering Axles : - -King pin (Type) : 1 position with 1x coupling-pen 2” -Tires : 16+1 Units, 245 / 70 R 17.5 -Rims : 16+1 Units, 6.75 x 17.5 steel rims -Landing Gear : Mechanical operated by one side, two speed -Brake System : Wabco EBS (4S/3M) with RSS according to EC Directive with ADR Adaptation -Brake Chamber -2 axles with 4 units emergency brake chambers. -2 axle with 4 units service brake chambers. Electric System -24V, 2x7 + 1x15 pin sockets, according to SAE standard with ADR Adaptation SABA Brand -2 x Rear Stop Lights. - 4 x Side LED Lights -2 x White LED Lights - 2 x Front LED Lights -2 x Registration Plate Lights - 2 x rotating Lights Floor -Above tyres and edges of platform are covered chequered sheet and hard wood -The middle surface is covered by flat sheet steel Rear Loading Ramps -Hydraulic operated rear ramps with Electro pump for rear ramps hydraulic function with cable -push – button for remote control -Folding type rear ramps length 2500 mm +1500 mm width 900 mm -Rear ramps are sliding internal and external hydraulic -Short steel ramps behind of neck. Paint Application -Sand Blasting, Chemical cleaning, HYZINC covering, Epoxy covering and 2 coats of acrylic paint TECHNICAL SPECIFICATIONS ACCESSORIES -2 x 8 pcs of heavy duty lashing rings mounted on the outer frame mushroom type -4 x Certificated Expray mud flaps. -1 x Plastic water tank -2 x Wheel chocks and holders -2 x 8 Galvanized sides extensions brackets 250 mm + 250 mm -2 x Side Protections, Aluminium -1 x Tool box. -1 x spare Wheel carrier with 1 tire(on the gooseneck) -2 x Manual support Legs at the rear. -2 x Reflective tape and reflector sign at the rear and sides. -2 x Side extensions reflector -Steel front panel(height:400mm) -Aluminum side panels on gooseneck section(height:400mm) -1 plaque places on rear ramps or bumper = More information = Empty weight: 13.000 kg CE mark: yes COC available: YesMostrar más
