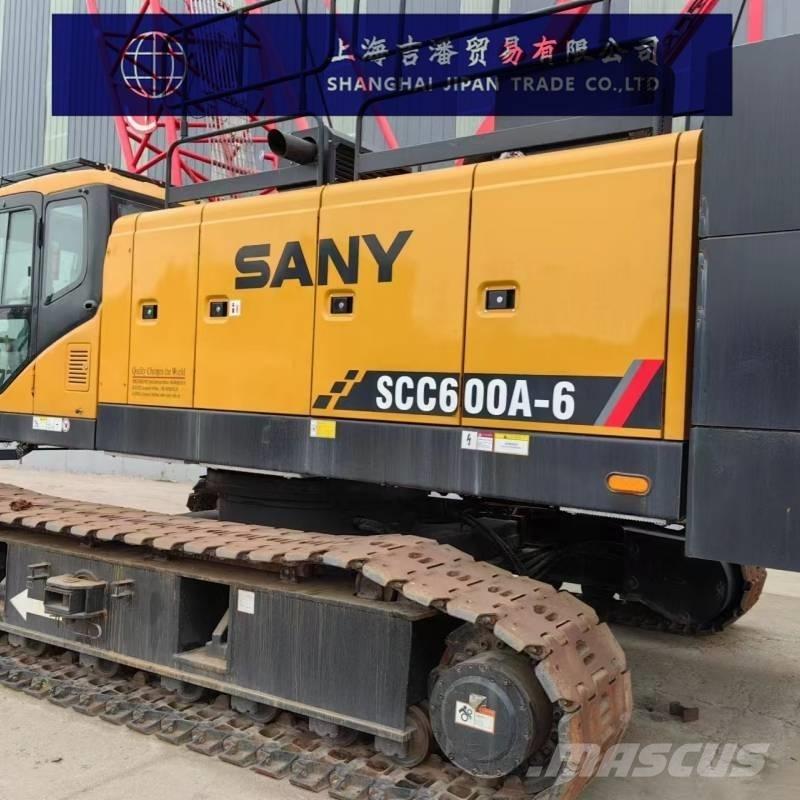

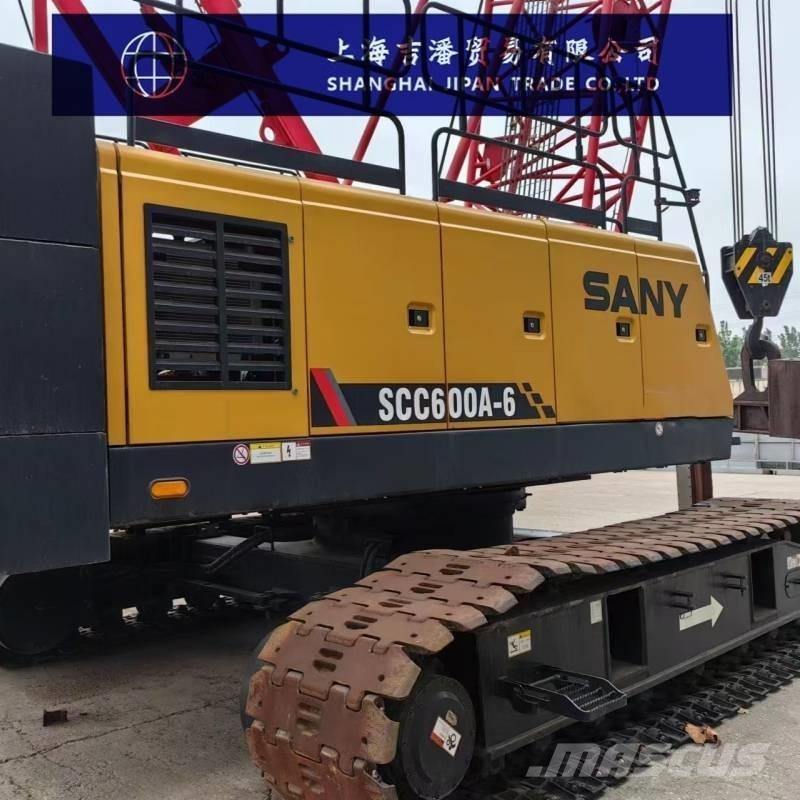

Sany SCC 600 A-6

Fly Jib Hook Counter Weight We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Engine parameters Model: QSB5.9-C210 Rated power: 154kW Rated speed: 2200r/min Maximum output torque: 820N·m Rotational speed: 1500r/min Emission standards: Meet the European non-road Stage III emission standards and comply with China's non-road National III emission standards Fuel tank capacity: 400 liters Overall machine parameters Overall machine weight (basic arm) : 48 tons Rear counterweight + central counterweight + super lifting counterweight: 16t Maximum single piece transportation weight: 30.5 tons Maximum transportation dimensions (length × width × height) : 12.1m×3m×3.35m Ground specific pressure (basic arm) : 0.062Mpa Climb: 40% Track plate width: 760mm Lifting performance parameters Main boom operating condition Maximum lifting capacity: 60 tons Main arm length: 13-52 meters Maximum lifting moment: 222t·m Heavy-duty fixed short auxiliary boom working condition Maximum lifting capacity: 7 tons Main arm length: 43 meters Auxiliary arm length: 6.1-15.25 meters Speed parameter Main hoisting rope speed: 0-130m/min Auxiliary hoisting rope speed: 0-130m/min Main amplitude hoisting rope speed: 0-80m/min Rotation speed: 0-1.9r/min Walking speed: 0-1.3km/h Parameters of the hydraulic system Hydraulic oil tank capacity: 305L
