Unic B-350.1V
Precio sin IVA
Precio a consultar
Imprimir
INFORMACIÓN
Grupo de productos
Grúas de oruga
Marca / modelo
Unic B-350.1V
Año de fabricación
2020
Horas de uso
450 h
Ubicación
Duisburg, Nordrhein-Westfalen
País
Alemania
Grado general
1
2
3
4
5
Mascus ID
3F837FA7
DETALLES
Nº de propietarios anteriores
1
Peso bruto
2.440 kg
Capacidad máxima de carga
3.500 ton
Máxima capacidad de elevación en punta
800 ton
Longitud del brazo
8,65 m
Longitud mínima del brazo
2,53 m
Mínimo de pluma móvil
1,30 m
Grúa con plumin
2,60 m
Longitud de la pluma de la grúa
8,65 m
Altura de elevación
12 m
Altura bajo gancho de la grúa: pluma horizontal
8,80 m
Altura bajo gancho de la grúa: plumín abatible
2,60 m
Motor del chasis
Benzin-Motor/Elektro-Antrieb
Tipo de Grúa
Aguilón hidráulico
Color original
Rot
Dimensiones de transporte (LaxAnxAl)
2.69 x 630 x 1.38 mm
Tipo del vehículo transportador
Sobre orugas
País de fabricación
Japón
Términos de entrega
FCA, CFR, EXW
Certificados
CE, TÜV
Accesorios
mechanische Multifunktionale Klappspitze
mit Kopfrolle und Wirbelhaken
Kurzspitze 0,30 m, max. Traglast 700 kg
Hakenflasche 2-rollig, max. Traglast 3,5 t
Einseilhaken (Bommel), max. Traglast 900 kg
Accesorios
Ganchos de bloqueo
Documentos
Más información

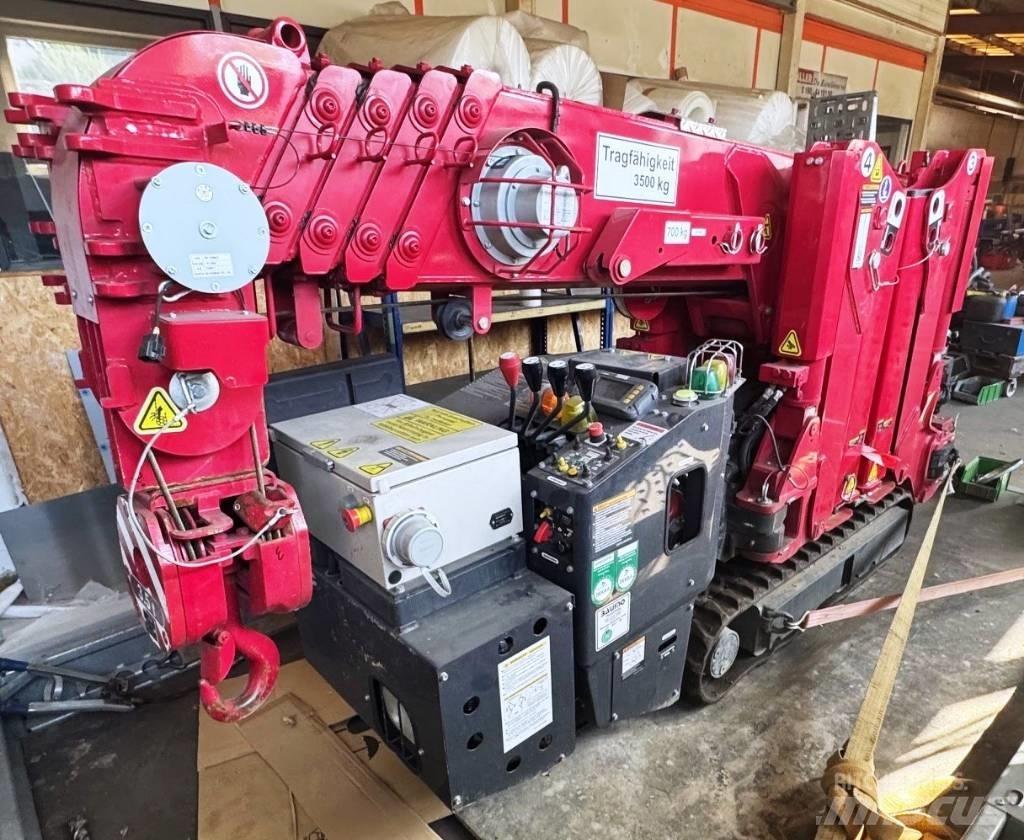

UNIC spider crane B-350.1V, year 2020, used
450 working hours, petrol engine, electric drive,
variable outrigger system, mechanical multifunctional swing-away jib
TECHNICAL DETAILS:
max. lfiting capacity 3,5 t x 1,4 m
max. working range 10,0 m
max. lifting height 12,0 m
max. outrigger base 3,9 x 3,9 m
DIMENSIONS & WEIGHT
Length 2.690 mm, width 630 mm, height 1.375 mm
total weight 2.440 kg
CRANE EQUIPMENT:
mechanical multifunctional swing away jib, length 1,3 /1,9 / 2,6 m,
max. loading capacity 700 / 500 / 250 kg, angel 10°, 45°, 80°
with sheave head usable as jib extenstion
with swivel hook usbale as assembly jib
0,30 m short jib with swivel hook, max. loading capacity 700 kg
one winch
radio remote control, multi functional
petrol engine 13 kW
electric drive 380 V, 25 m cable
Safe Load Indicator System Rayco Wylie Sysstem i4500
working range limiter, height range limiter
360° slewing range unlimited
variable outrigger system, computer controlled
drive and operation levels on crane
working light, black rubber tracks, (non-marking tracks as option available)
2-sheave hook block, max. capacity 3,5 t
singel line hook, max. capacity 900 kg
searcher hook max. capacity 900 kg
full documentation available:
operation manual, load charts, CE certfificate of conformity, spare part list
Mini & Mobile Cranes Körner GmbH
Alte Kaserne 23 47249 Duisburg Nordrhein-Westfalen Alemania
