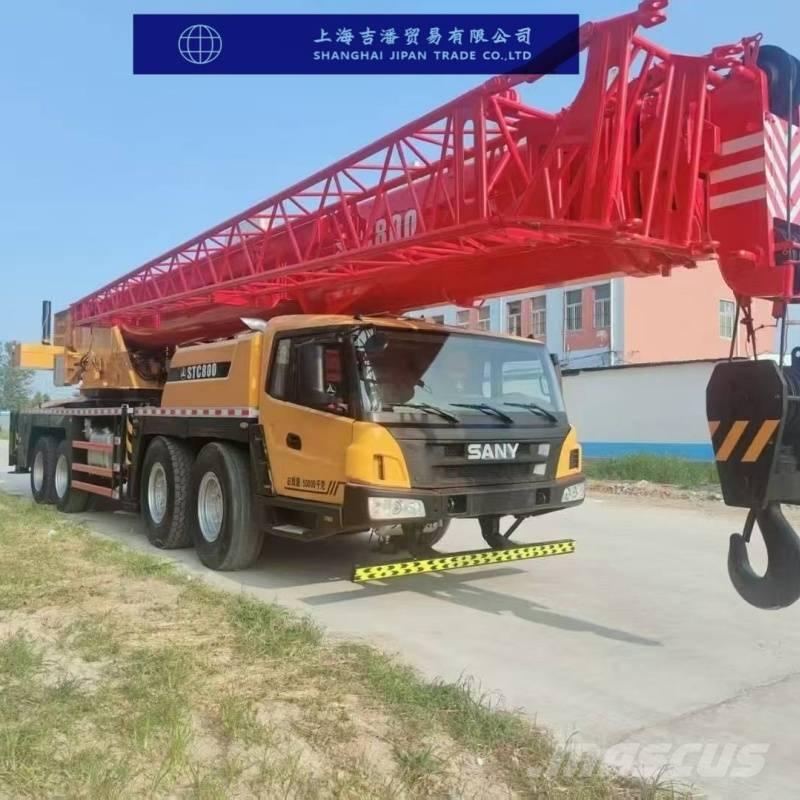

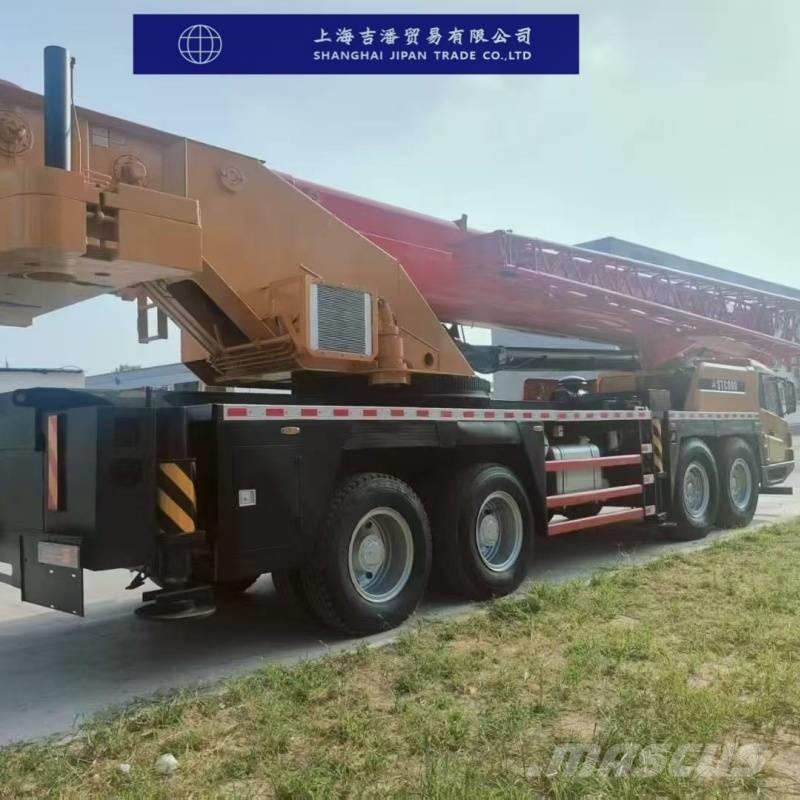

Sany STC 800

Fly Jib ,Hook ,Counter Weight, ETC. We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Fly Jib ,Hook ,Counter Weight, ETC. Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Parameter Value Overall Length 15290mm Overall Width 2800mm Overall Height 3880mm Total Mass of the Whole Machine 50000kg Rated Total Lifting Capacity 80t Maximum Lifting Moment - Basic Boom 3293kN·m Maximum Lifting Moment - Longest Main Boom 1803kN·m Boom Length - Basic Boom 12.96m Boom Length - Longest Main Boom 50m Boom Length - Longest Main Boom + Jib 67.5m Maximum Speed of Main Winch Single Rope (No Load) 130m/min Maximum Speed of Auxiliary Winch Single Rope (No Load) 130m/min Full Extension/Retraction Time of Boom 140s/160s Full Lifting/Lowering Time of Boom 65s/90s Slewing Speed 0-1.8r/min Axle Configuration 8×4×4, four-bridge chassis Outrigger Span (Transverse × Longitudinal) 8m×6.43m Engine Model (Euro V) Weichai WP12.375E50 Engine Rated Power 276kW/1900rpm Engine Maximum Output Torque 1800N·m/1000-1400rpm Maximum Driving Speed 80km/h Minimum Turning Radius 12m Maximum Gradeability 44% Fuel Consumption per 100km ≤44L
