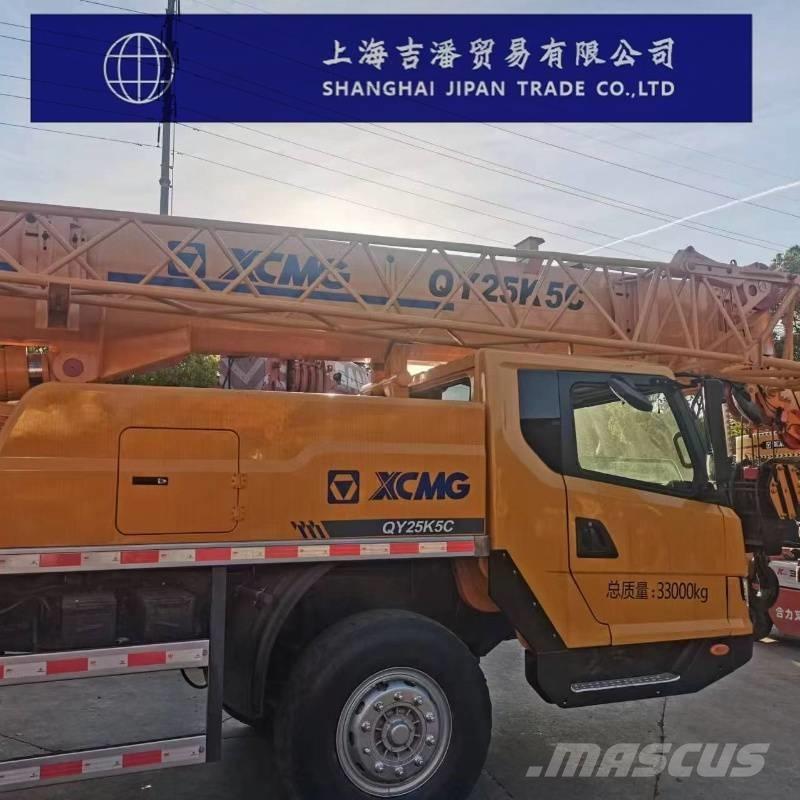

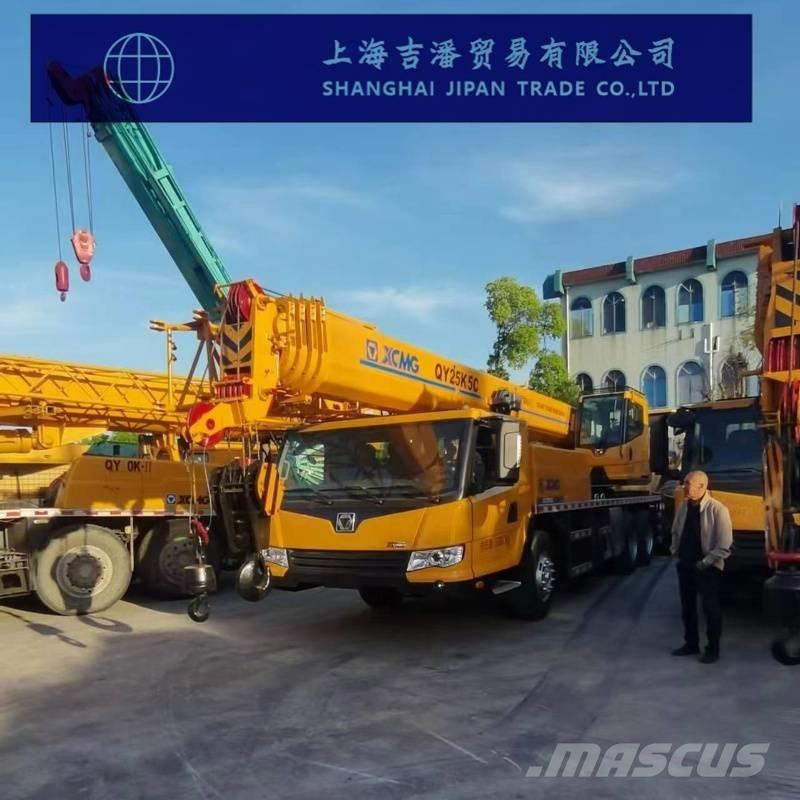

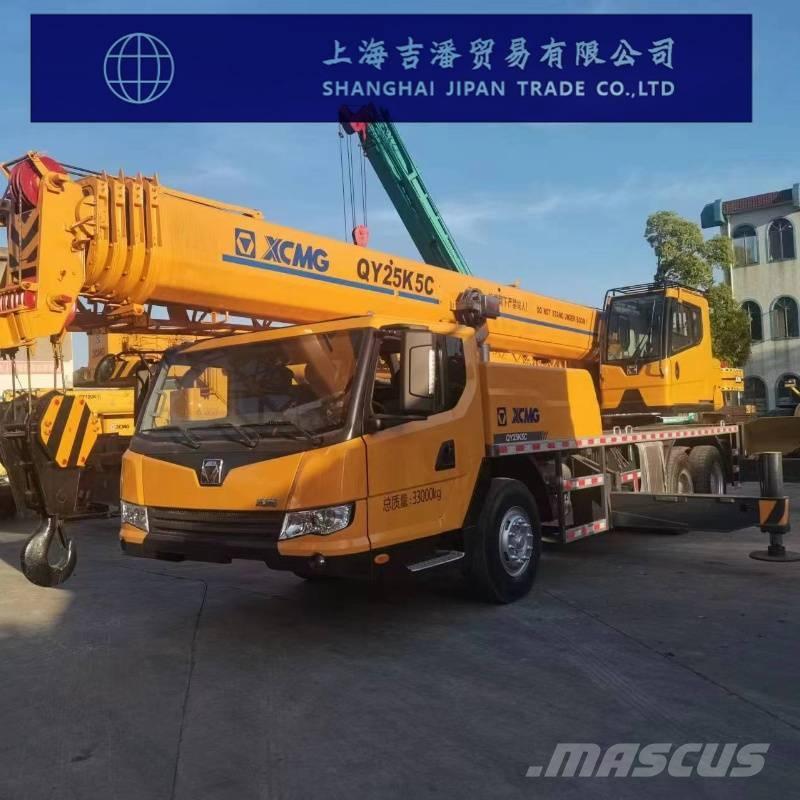

XCMG QY 25 KC

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 13696501072 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

XCMG QY25K5A crane parameter configuration Lifting capacity Maximum rated lifting capacity (t) 25 Maximum rated lifting torque (KN.m) 1061 Minimum working range (m) 3 Maximum lifting height - basic arm (m) 10.9 Maximum lifting height - full reach arm (m) 41.5 Maximum lifting height - basic arm jib (m) 48.5 The maximum lifting capacity (tons) is less than 45 tons Lifting arm size Lifting arm length - basic arm (m) 10.6 Length of the lifting arm - full extension arm (m) 41 Lifting arm length - basic arm Knee arm (m) 49.3 Job speed parameters The maximum lifting speed of the main winch (m/min) is 135 The maximum lifting speed of the sub-hoist (m/min) is 135 The total extension time of the lifting arm (s) is 78 Luffing time (s) of the lifting arm (s) 38 Rotational speed (rpm) 2.5 motor Chassis engine model SC9DF290Q4 Rated power (kw/rpm) 213/2200 Driving parameters Maximum travel speed (km/h) 90 Maximum climbing degree (%) 41 Approach/Departure Angle (°) 11/12 Minimum ground clearance (mm) 275 Specifications of the whole machine The total length of the whole machine (mm) is 12680 The overall width of the whole machine (mm) is 2500 The total height of the whole machine (mm) is 3400 Wheelbase (mm) 4425 1350 Operating weight (t) 32.8 Outrigger span Longitudinal × horizontal (m) 5.3×6
